Токоизмерительные клещи HT100 HT Instruments

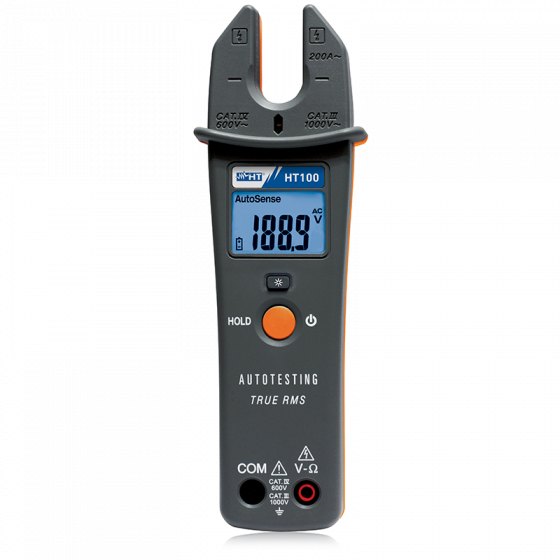

HT100 HT Instruments Clamp Meter

HT100 TRMS Clamp meter with open jaws for measures up to 200A AC

Features:

• TRMS Clamp meter with open jaws for measures up to 200A AC
• Professional clamp meter HT100 is provided with automatic recognition of functions, or measuring AC current up to 200A and AC/DC voltage up to 1000V in TRMS to reach CAT IV 600V and CAT III 1000V in compliance with standard IEC/EN61010-1.
• The clamp is provided of open jaws to measure current without breaking the circuit, with a wide display with 9999 measuring spots, Voltsense phase detector function, Data HOLD and backlight to allow for a simple reading even in poorly lit environments. HT100 also carries out measurements of Resistance, Continuity test and Diode test. The clamp is also provided with the auto power off function to preserve its own battery.

Specifications:

Functions

• Current measuring range 200A
• TRMS
• Measuring counts
• AC/DC voltage
• AC/DC current AC
• Resistance and continuity test with buzzer
• Diode test
• Automatic recognition of internal functions
• Detection of AC voltage without contact
• Autorange
• Data HOLD
• Backlit LCD display
• Auto power off
• Maximum diameter for clamp
• Power supply
• Protection category
• Weight in grams (batteries included)
• Size (LxWxH) (mm)

Guidelines

• CE MARK
• EMC: IEC/EN61326
• IEC/EN61010-032
• IEC/EN61010-1
• IEC/EN61010-2

Технические характеристики
