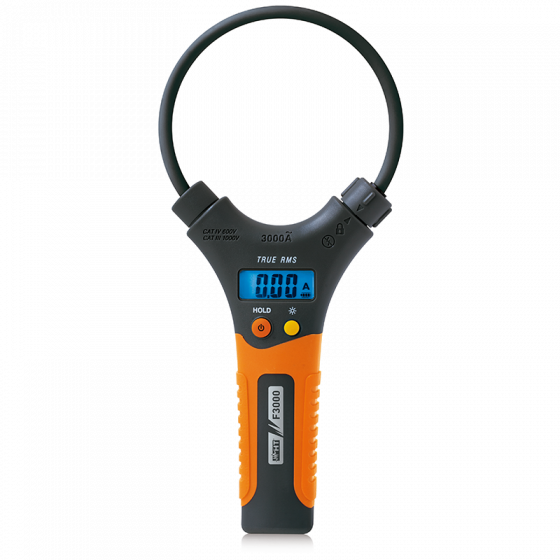

F3000 HT Instruments Clamp Meter
F3000 True Rms Clamp meter with flexible current probe to measure up to 3000A AC
Features:
True Rms Clamp meter with flexible current probe to measure up to 3000A AC
F3000 has been designed to measure AC current up to 3000A in TRMS in total autorange and reachs CAT IV 600V, CAT III 1000V according to standard IEC/EN61010-1.
The clamp is provided with innovative flexible current probe capable of reaching a maximum diameter of 110mm and allowing for an easy reading in any condition. The clamp is provided with a wide display with 3000 measuring spots, Data HOLD function and Backlight to allow for a simple reading even in poorly lit environments. The clamp is also provided with the auto power off function to preserve its own battery.
Specifications:
Functions
- Maximum diameter for clamp
- TRMS
- Current measuring range 3000A
- AC/DC current AC
- Backlit LCD display
- Autorange
- Auto power off
- Data HOLD
- Power supply
- Measurement category
- Weight in grams (batteries included)
- Size (LxWxH) (mm)
Guidelines
- CE MARK
- EMC: IEC/EN61326
- IEC/EN61010-032
- IEC/EN61010-1
- IEC/EN61010-
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
| Amps | 3 kA |
| Volts | 1 kV |
