Features
- True-rms sensing measures active (W), reactive (VAR) and apparent (VA) power with dual-display power factor readout
- Total harmonics distortion (THD), AC/DC voltage up to 600 V, AC current up to 1000 A, resistance, frequency, temperature
- Peak hold
- Optional PC interface capability (RS-232 KIT2)
- Audible continuity
- Auto power off
- Automatic polarity
- Low battery indication
- Data hold
- Large, easy to read LCD display with backlight
- Accommodates conductors up to 1.77″ (45 mm) in diameter
- Voltage overload protection for all functions up to 600 V AC/DC

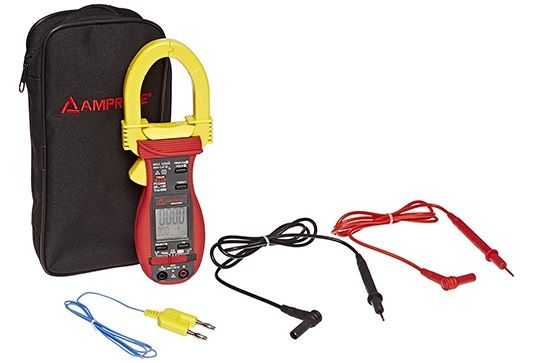

Accessories (Included)
- ACD-41PQ
- Carrying case
- Test leads
- Batteries (installed)
- Type-K thermocouple
Specifications
- True-rms: Yes
- AC Current: 40.00 A, 400.0 A, 1000 A
- AC/DC Voltage: 600.0 V
- Resistance: 999.9 ?
- Continuity: Yes
- Temperature: -58 °F → 572 °F (-50 °C → 300 °C)
- Frequency: 5.00 Hz → 500.0 Hz
- Active power (W): 0 kW → 600.0 kW
- Reactive power (VAR): 0 kVAR → 600.0 kVAR
- Apparent power (VA): 0 kVA → 600.0 kVA
- Power Factor: 0.10 → 0.99
- Energy (KWHr): Yes
- Total Harmonic Distortion (THD%): 0.0 % → 99 %
- Accommodates Conductors: up to 1.77″ (45 mm) in diameter
The ACD-41PQ is a 600 V, 1 kA clamp meter from Amprobe. The Amprobe ACD-41PQ provides a simple and effective way to verify if the electrical system is affected by harmonics. Add on troubleshooting capabilities with the ACD-40PQ data-logging feature or get complete power analysis with the ACD-41PQ. Increase measuring efficiency with an optional PC interface kit.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 1 kA |
| Volts | 600 V |
