Features
- True-rms technology improves accuracy in noisy environments
- Measures AC/DC voltage to 1000 V, AC/DC current to 1000 A, plus resistance, frequency, capacitance, power and power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
- Measures temperature from -58 °F to 1832 °F (-50 °C to 1000 °C)
- Includes inrush current measurement and phase rotation indication for 3-phase motors
- Non-contact voltage detection enhances safety
- Low pass filter allows measurement of voltage and frequency of variable frequency drives
- Continuity beeper quickly identifies shorts and opens
- Large backlit digital display with analog bar graph presents the full picture
- Min, max and smart data hold
- Peak hold identifies spikes and transients
- In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
- Auto power off conserves battery life
- Maximum jaw opening accommodates large conductors up to 1.60″ (45 mm)
- Rubber overmold body absorbs shocks—drop proof to 4 feet (1.2 m)
- CAT IV-rated AC/DC current clamp meter
Accessories (Included)
- ACDC-52NAV
- Test leads
- Batteries (installed)
- Carrying case
Specifications
- AC Current: 100.00 A, 1000.0 A
- DC Current: 100.00 A, 1000.0 A
- AC Voltage: 100.00 V, 1000 V
- DC Voltage: 100.00 V, 1000 V
- Resistance: 1.0000 KO, 10.00 KO, 100.00 KO
- Frequency: 20.0 Hz to 10 KHz
- Capacitance: 400.0 µF, 4.000 mF
- THD (total harmonics distortion): 0.1% → 100.0%
- Individual harmonics: 1 → 25
- Power: 10 kW → 1000 kW
- Power factor: -1.00 → 1.00

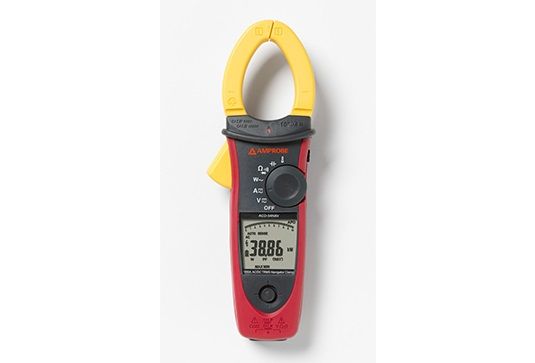

The ACDC-54NAV clamp-on power meter offers AC/DC current measurements to 1000 A, AC/DC voltage to 1000 V, temperature capabilities, and wide jaws to handle large conductors up to 1.6″ (40 mm) for high voltage industrial environments.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 1 kA |
| Volts | 1 kV |
