Features
- True-rms sensing increases measurement accuracy in noisy environments
- Measures AC/DC current up to 1000 A, AC voltage to 1000 V and DC voltage to 750 V, frequency, resistance, and capacitance and duty cycle
- Peak hold checks transients and motor start currents for spikes
- Relative zero displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Audible continuity helps quickly identify opens and shorts
- Auto and manual ranging for measurement speed and flexibility
- Data hold holds the reading on the display for further analysis
- Diode test quickly finds voltage drops
- Accommodates conductors up to 2″ (51 mm) in diameter
- Safety rated to CAT IV 600 V and CAT III 1000 V
- Auto power off conserves battery life
- Backlight makes it easy to read even in dark conditions

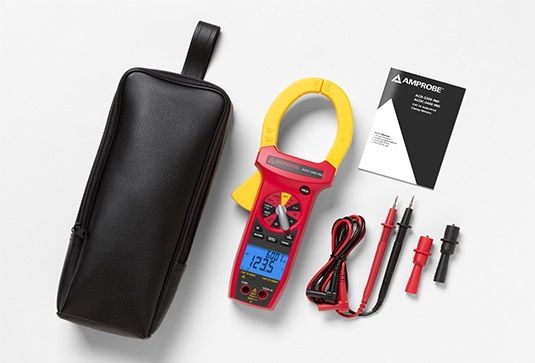

Accessories (Included)
- ACDC-3400 IND
- Deluxe carrying case
- Test leads
- Battery (installed)
Specifications
- DC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
- AC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
- AC Current: 66.00 A, 660.0 A, 1000 A
- DC Current: 660.0 A, 1000 A
- Resistance: 660.0 O, 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO
- Capacitance: 6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF
- Frequency: 66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz
- Continuity: Yes
The Amprobe ACDC-3400 clamp multimeter is CAT IV rated to add an extra level of safety for high voltage, industrial or utility testing applications. It is an AC/DC current clamp meter and a voltage meter all in one.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 1 kA |
| Volts | 1 kV |
