Features
- TRMS Measurement
- 180 degree rotating head for the perfect display viewing
- Advanced VoltTect non-contact voltage detection
- Slim jaw design with one hand operation
- Measures AC Current up to 400 ACA, AC/DC, Voltage up to 600 V, Resistance and Capacitance
- Temperature measurement
- Audible continuity
- Auto and manual ranging respectively for quick checks and precise measurements
- Auto power off
- Data hold
- Accommodates conductors up to 1.18” (30 mm) in diameter

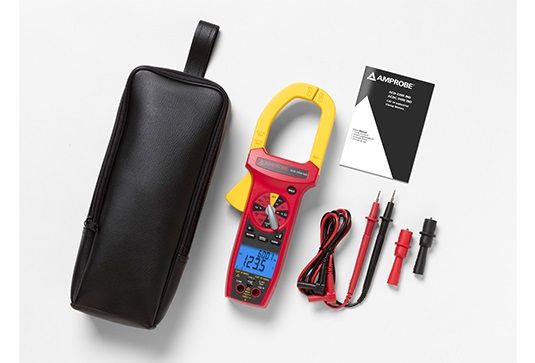

Accessories (Included)
- ACD-3300 IND
- Test leads
- Type-K thermocouple
- Battery (installed)
- Carrying case
Specifications
- DC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
- AC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
- AC Current: 66.00 A, 660.0 A, 1000 A
- Resistance: 660.0 O, 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO
- Capacitance: 6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF
- Frequency: 66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz
- Continuity: Yes
- Temperature: -30 °F → 1832 °F (-35 °C → 1000 °C)
- Accommodates conductors: up to 2.0″ (51 mm) in diameter
This CAT IV rated ACD-3300 IND Clamp On Tester is ideal for industrial applications and utilities that require an extra level of safety. Including True-rms sensing for accuracy, this clamp on meter»s extra large jaws can clamp on to those wide diameter wires making taking measurements in industrial environments simple.
Технические характеристики
| Manufacturer | Amprobe |
|---|---|
| Condition | New |
| Amps | 1 kA |
| Volts | 1 kV |
