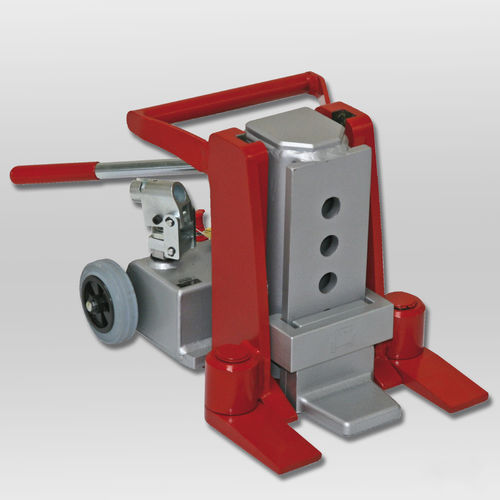

Advantages of jacks – Series JH G plus EX • Integrated spring return retracts piston automatically on JH 15 up to JH 30 G plus EX. • Slide shoe design inside the guiding track prevents twisting of the piston inside the lifting cylinder. This guarantees better force distribution, less friction and reduced wear compared to conventional jacks. • Reduced maintenance costs due to removable stroke unit and easy to change slide shoes. • Extremely lightweight with high performance due to the use of highquality material and innovative design. • Continuous adjustment to the load due to swiveling safety toe. Secure stableness in every situation even in lifted position.
Технические характеристики
CharacteristicsTypetoeTechnologyhydraulicMaximum load30 tonsApplicationsfor lifting applicationsOther characteristicsfor heavy loadsLifting height
Min.: 20 mm (0.8 in)
Max.: 304 mm (12 in)
Height
20 mm (1 in)
Stroke
200 mm (7.87 in)
Weight
95 kg (209.44 lb)
