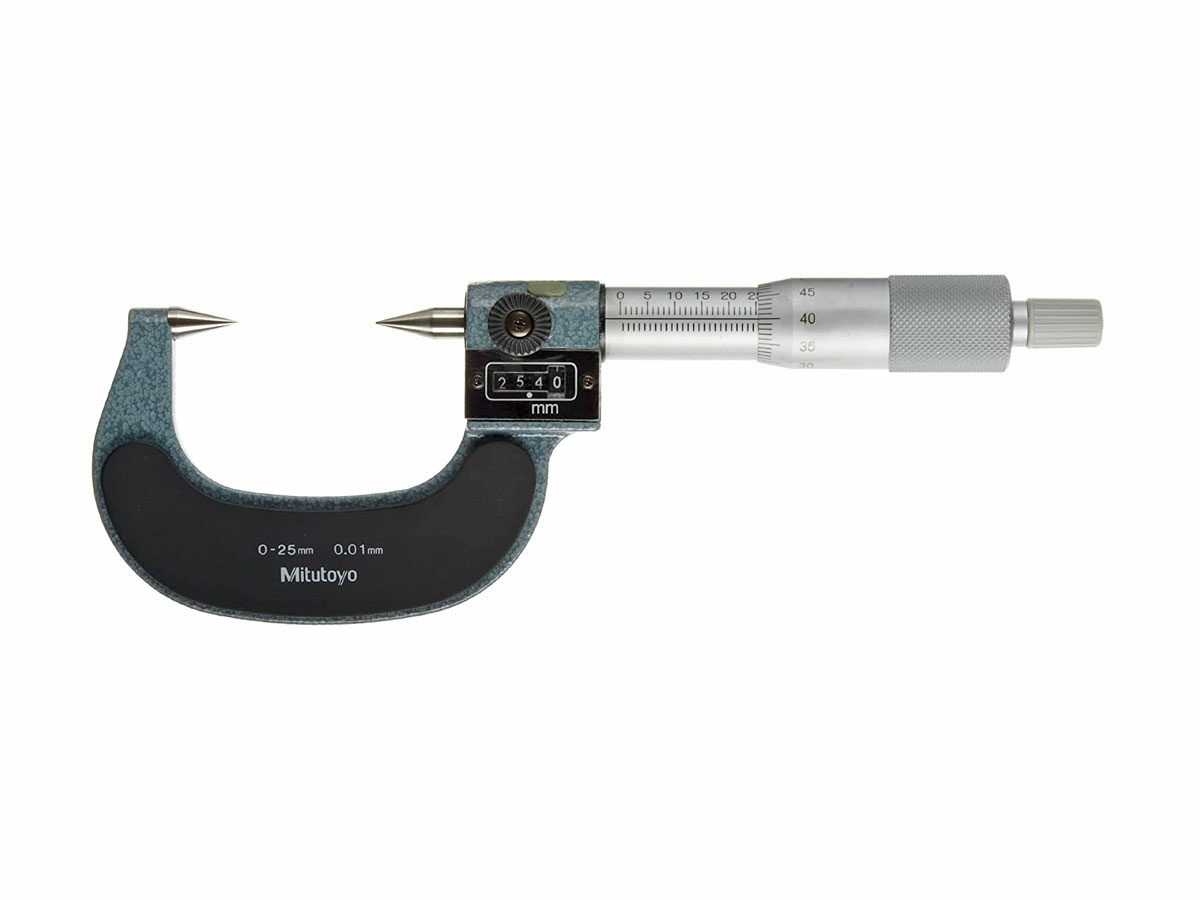

The Mitutoyo pointed micrometer utilizes pointed anvil and spline tips to measure small groves on parts or workpieces along with keyways. A mechanical digit counter displays readings to .0001” for easier viewing and recording. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Available in Metric and Inch models
- Points are constructed of hardened steel or carbide depending on the model
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
- A spindle lock provides secure locking of the measurement position for easier recording
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame is constructed of high-grade steel and has a baked enamel finish for durability
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | Contact Point: | |
|---|
| 142-153 | — | Metric | 0-25mm | ±3µm | 0.01mm | 15 |
| 142-177 | — | Inch | 0-1″ | ±.00015″ | .001″ | 15 |
| 142-201 | — | Metric | 0-25mm | ±3µm | 0.01mm | 30 |
| 142-225 |  | Inch | 0-1″ | ±.00015″ | .001″ | 30 |
| 142-153 |
| 142-177 |
| 142-201 |
| 142-225 |
Технические характеристики
| Technology: | Mechanical Counter |
|---|
| Ratchet/Thimble: | Rachet Stop |
|---|
| Mass: | 260g |
|---|
