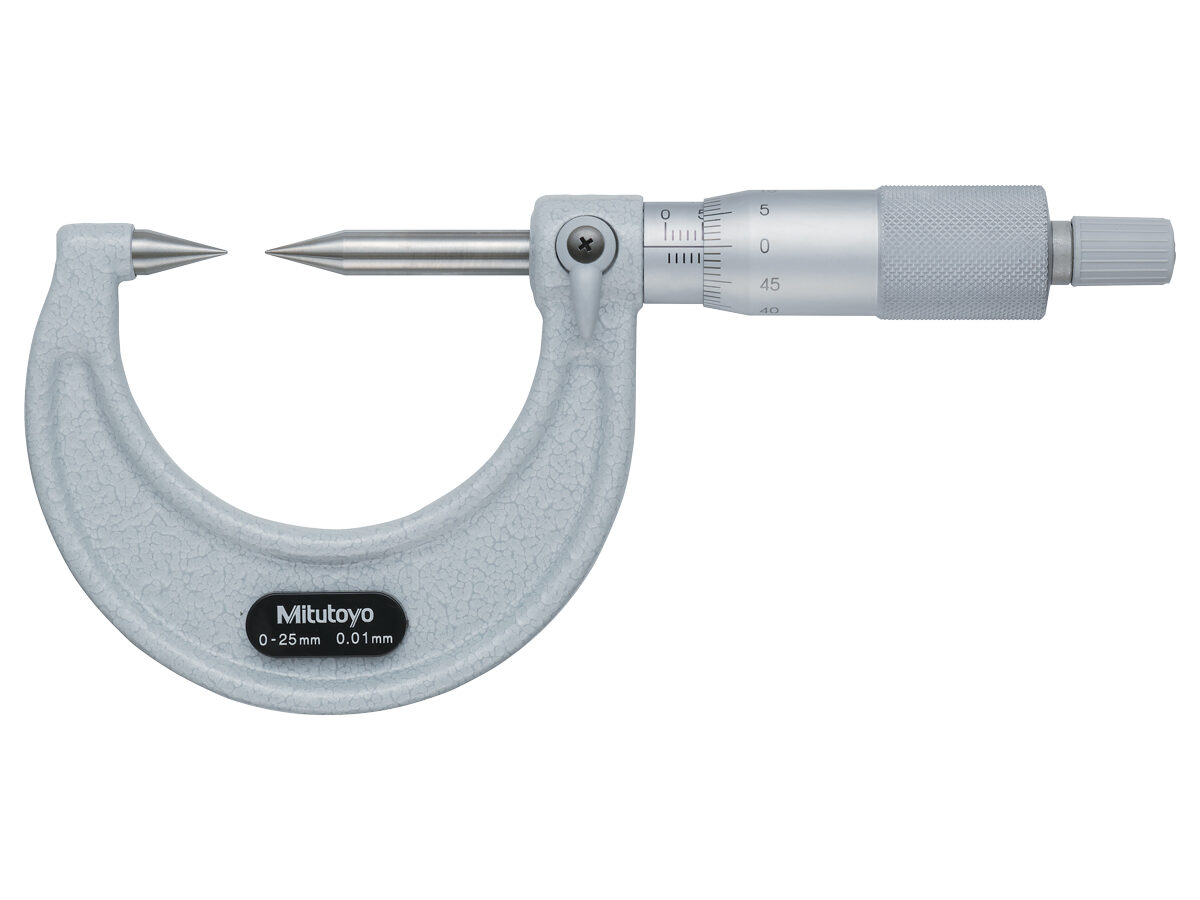

Точечный микрометр-без карбида

Механический точечный микрометр Mitutoyo имеет заостренные наконечники на пятке и шпинделе для измерения небольших канавок, шпоночных канавок и других труднодоступных мест. Доступны в дюймовых и метрических измерениях.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Mitutoyo pointed micrometer anvil and spline measures small groves on parts or workpieces along with keyways. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Available in Metric and Inch models
Points are constructed of hardened steel or carbide depending on the model
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Vernier scale graduated to .001” on the thimble helps with taking precise outer dimension measurements
A spindle lock provides a secure locking of the measurement position for easier recording
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame is constructed of high-grade steel and has a baked enamel finish for durability
Supplied in fitted plastic case

Order No.:	Product Image:	Units:	Range:	Accuracy:	Mass:	Graduation:	Contact Point:

Order No.:

112-153	—	Metric	0-25mm	±3µm	205g	0.01mm	15
112-154	—	Metric	25-50mm	±3µm	305g	0.01mm	15
112-155	—	Metric	50-75mm	±3µm	370g	0.01mm	15
112-156	—	Metric	75-100mm	±4µm	500g	0.01mm	15
112-165	—	Metric	0-25mm	±3µm	205g	0.01mm	15
112-166	—	Metric	25-50mm	±3µm	305g	0.01mm	15
112-167	—	Metric	50-75mm	±3µm	370g	0.01mm	15
112-168	—	Metric	75-100mm	±3µm	500g	0.01mm	15
112-177		Inch	0-1″	±.00015″	205g	.00015″	15
112-178	—	Inch	1-2″	±.00015″	305g	.00015″	15
112-189		Inch	0-1″	±.00015″ / ±4µm	205g	.00015″	15
112-190	—	Inch	1-2″	±.00015″	305g	.00015″	15
112-191	—	Inch	2-3″	±.00015″	370g	.00015″	15
112-201		Metric	0-25mm	±3µm	205g	0.01mm	30
112-202	—	Metric	25-50mm	±3µm	305g	0.01mm	30
112-203	—	Metric	50-75mm	±3µm	370g	0.01mm	30
112-204	—	Metric	75-100mm	±4µm	500g	0.01mm	30
112-213	—	Metric	0-25mm	±3µm	205g	0.01mm	30
112-214	—	Metric	25-50mm	±3µm	305g	0.01mm	30
112-215	—	Metric	50-75mm	±3µm	370g	0.01mm	30
112-216	—	Metric	75-100mm	±4µm	500g	0.01mm	30
112-225		Inch	0-1″	±.00015″	205g	.00015″	30
112-226	—	Inch	1-2″	±.00015″	305g	.00015″	30
112-237		Inch	0-1″	±.00015″	205g	.00015″	30
112-238	—	Inch	1-2″	±.00015″	305g	.00015″	30

112-153
112-154
112-155
112-156
112-165
112-166
112-167
112-168
112-177
112-178
112-189
112-190
112-191
112-201
112-202
112-203
112-204
112-213
112-214
112-215
112-216
112-225
112-226
112-237
112-238

Технические характеристики

Technology:	Mechanical
Ratchet/Thimble:	Rachet Stop
