Features:
- 0.03Hz to 3MHz frequency range
- Simultaneous display of frequency & amplitude
- External 7 digit 120MHz frequency counter
- High waveform quality at all frequencies & levels
- 2mV to 20V pk-pk from 50 Ohms or 600 Ohms
- Variable symmetry with constant frequency
- Auxiliary TTL/CMOS output
- 1000:1 frequency change by vernier or sweep voltage
- Precision internal linear or logarithmic sweep
- Internal or external amplitude modulation
Accessories:
- 2U Rack Mount for plastic cased bench instruments
Specifications:
- Frequency Range: 0.03Hz to 3MHz in 7 overlapping decade ranges with fine adjustment by a vernier.
- Vernier Range: 1000:1 on each range.

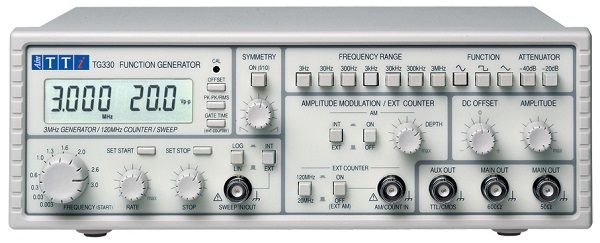

The TG330 has all the features of the TG320 plus an internal sweep generator with linear or log sweep, variable sweep rate and a sweep output socket. It also offers internal or external amplitude modulation.
Технические характеристики
| Manufacturer | Thurlby Thandar Instruments |
|---|---|
| Condition | New |
| Frequency | 3 MHz |
