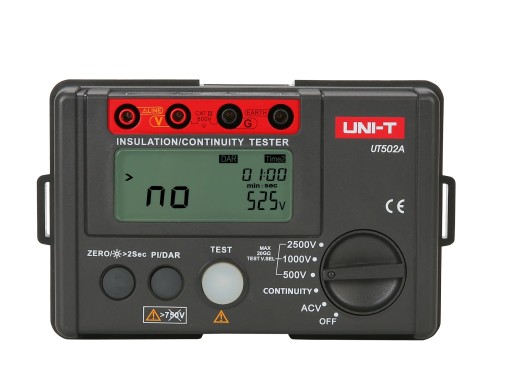

This UNI-T UT502A insulation resistance tester measures whether the insulation of cables is sufficient. This prevents problems such as short circuits and ensures safety. With a maximum voltage measurement capability of 2500 V, it offers comprehensive coverage for insulation testing needs. The display of the UT502A offers an LCD backlight and shows up to 2000 counts. Moreover, the UT502A can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption).
Specifications Display count 2000 Insulation resistance () VoltageMaximum 500 V5 G 1000 V5 G 2500 V20 G Maximum AC voltage750 V Auto Range Yes Other functionalities Backlight, Auto range, High voltage indication, Overload indication, Low battery indication, Auto discharge, 10 M internal resistance test Power source 6 x 1.5V battery Display dimensions 70.6 x 34 mm Dimensions 150 x 100 x 71 mm Weight 500 g Accessories
The UT502A will be delivered including:
- Test leads
- Alligator clips
- Batteries
- Test probes
- Carrying bag
