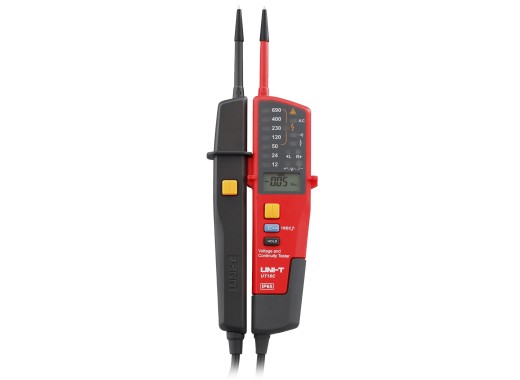

The UT18C from UNI-T is a voltage tester and detector. This meter simplifies the task of measuring DC and AC voltages. A voltage measurement can be done either by a 1-pole or 2-pole measurement. Furthermore, the UT18C has different measuring functions such as, rotary field check, voltage tests, continuity tests, etc. In addition, this meter is also equipped with an LED work light to illuminate the working surface. The voltage tester features an auto shutdown mode to preserve battery. If the battery does get empty, the meter notifies the user so a replacement can be installed. Specifications AC/DC voltage measuring range:0 — 690V (100 — 690V with 1-pole measurements) Rotary field check:50 to 60 Hz Display modes:LED and LCD indications Continuity test: 0 — 100 kOhm (buzzer and LED indicator) Polarity indication: Yes Protection category:IP65 Safety category:CAT III 690V & CAT IV 600V Dimensions:272 x 85 x 31 mm Weight:260g Accessories
The UT18C includes:
- 2x AA Batteries
