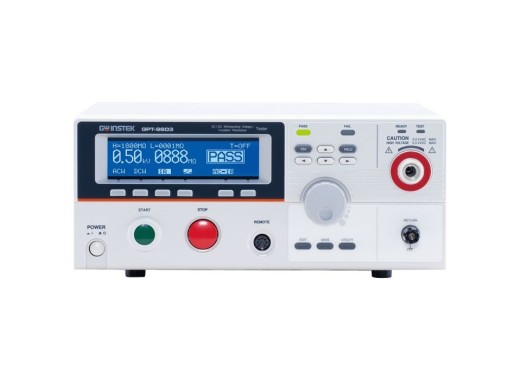

The GPT-9600 series Hi-pot testers from GW Instek are high quality Hi-pot testers at an attractive price. The GPT-9602 is able to perform AC & DC withstanding tests. Many features and a maximum test voltage of 5 kV makes these testers a good choice.
The testers are designed for ease of use, the high resolution dot LCD display clearly shows which settings have been chosen, and whether the test object meets the set requirements. The devices meet the test requirements of IEC, EN, UL, CSA and CE.
When working with high voltages such as 5 kV, it is important that no safety problems occur. The testers are designed to minimize the change of this happening, so when the test is completed or a dangerous situation occurs they switch off the voltage.
Tests
Hi-pot (DC/AC withstanding)
Aim: To prevent users of a product from receiving an electrical shock, for example due to a failure of the electrical insulation.
Method: By measuring the amount of current leaking between the high voltage part and the ‘safe’ low voltage part while using the product in high-voltage mode, one can measure whether dangerous situations may occur.
Isolation test
Aim: To test the quality of the insulation
Method: Alike to the Hi-pot test, measure how much current is leaking from the high-voltage part to the low-voltage part of the circuit. Models
The difference between the models in the GPT-9600 series is explained in the table below.
ModelACwithstandingDCwithstandingIsolationresistancePrice GPT-9601 993.18 €993.18 Excl. VAT GPT-9602 1143.18 €1,143.18 Excl. VAT GPT-9612 1143.18 €1,143.18 Excl. VAT GPT-9603 1394.18 €1,394.18 Excl. VAT Specifications Output voltage range 0,100 kV ~ 5,000 kV Output voltage resolution 10 V Max. power 100 VA Max. current 20 mA (0.5kV — 5kV)
5 mA (0.1kV — 0.5kV) Output-voltage waveform Sinus, 50/60 Hz (Adjustable) Display 240 x 48 dot matrix LED back light LCD Interfaces RS232 Weight 9 kg Dimensions 330 x 148 x 385 mm (LxWxH) Accessories
All GPT-9600 Hi-Pot testers are supplied including:
- Power cord
- Interlock key
- Remote terminal cable
- Test lead
