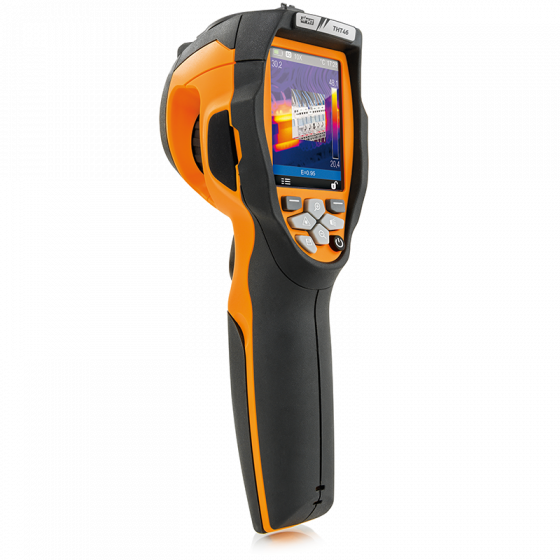

Тепловизор THT46 HT Instruments

THT46 HT Instruments Thermal Imager

THT46 Compact thermal camera with 160X120PXL resolution

Features:

Compact digital thermal camera with resolution 160X120PXL

THT46 is an absolute innovation in the sector of thermal cameras, both for the advanced prescriptions typical of a high-level thermal camera and for its reduced size. THT46 is provided with IR sensor with resolution 160x120pxl which makes it the ideal device for maintenance operations and everyday analyses.

The peculiarity of this device is its LCD colour display, with high brightness ans its drop-down menu, very easy to use, which allow a simple programming by means of a keypad. This device has a wide temperature range (350°C) and saves thermal images in standard JPG format and visual images (PiP functions) inside a micro SD card and can transfer the data onto the PC through its USB interface. Recording of IR videos is also available. This thermal camera is the ideal solution for detecting electric problems, checking mechanical parts, analyzing hydraulic systems, forced ventilation, etc. This thermal camera is also provided with SPAN function (creation of a temperature range of interest) and with the automatic setting of emissivity with a preset table of materials.

Specifications:

Functions

• Temperature screening with alarm threshold 32 ÷ 42 ±0.5
• IR sensor resolution 160X120
• Temperature range -20 ÷ 350°C / -4 ÷ 662°F
• Thermal sensitivity &lt, 0.1°C @ 30°C
• NETD &lt, 100mK
• Spectrum range 8 ÷ 14μm
• IFOV (@1m) 2.78mrad
• Type of IR sensor UFPA
• Frequency 50Hz
• Field of view (FOV) 25° X 19°
• Focus width of standard lens 9mm
• Focusing of IR optics Manual
• Resolution and FOV of integrated camera 1.3Mpxl, FOV 59°
• Fusion PiP function for combination of thermal and visual images
• 3 cursors: Central, Min, Max.
• Correction according to distance, reflected temperature and relative humidity Only reflected temperature
• 8 standard + 10 custom colour palettes 4 standard, no custom
• Integrated table with emissivity values of common materials
• Readings in °C, °F, °K
• Class 2 laser pointer
• Integrated white light illuminator
• Digital zoom 1x ÷ 32x
• Manual and automatic span
• Standard format of saved images JPEG
• Saving of IR videos in MPEG4 format
• Power supply with rechargeable battery
• USB interface to PC and THTLink software
• PAL/NTSC video output HDMI
• Hole for tripod insertion
• Battery type Rechargeable Li-ION 3,7V 2000mAh
• Recharging system USB on board
• Duration 4 hours
• External power supply External power supply 100/240VAC (50/60Hz)/5VDC
• Operating temperature -15°C ÷ 50°C
• Operating humidity 10% ÷ 90%HR
• -40°C ÷ 70°C
• Storage humidity 10% ÷ 90%HR
• Mechanical protection IP50 in compliance with IEC529
• Shock 25G, in compliance with IEC60068-2-29
• Vibrations 2G, in compliance with IEC60068-2-6
• Falling test 2m
• Size (LxWxH) (mm) 224x77x96mm
• Weight in grams (batteries included) 0.5kg

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1
