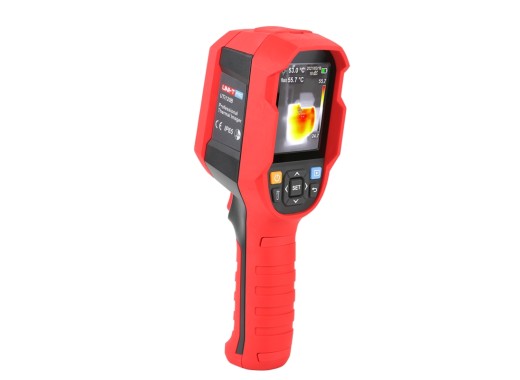

The UNI-T UTi120B is a thermal imaging camera with a resolution of 120 x 90 pixels and a temperature range of -20 to 400 °C. It also features a 2.8 inch TFT LCD display with a resolution of 320 x 240 pixels and a refresh rate of 25 Hz. In addition, this camera has a built-in visual light camera with a resolution of 640 x 480 pixels enabling digital and fusion image modes as well as digital photos on top of the IR image captures. The built in 5000mAh Li-ion battery offers an operating time of at least 6 hours and can be fully charged within 5 hours ensuring plenty of usage time before it requires recharging.
This camera offers other important features such as: palette with 5 colors, auto hot & cold spot tracking, alarm function, flashlight, image capture and pc software.
This camera can be considered to be very sturdy as it has an IP65 rating and been drop-tested up to 2m. It can be mounted on a tripod, because it features a 1/4 inch mount connector on the handle bottom.
Specifications Range-20 to 400 °C Accuracy±2 °C or ±2% (whichever is greater) IR resolution120 x 90 NETD≤60 mK Response time500 ms FOV50° Visual light resolution640 x 480 pixels Visual light FOV81° Image modesThermal, Fusion and Digital Display2.8 inch TFT LCD (320 × 240 pixels) BatteryAt least 6 hours Charge timeQuickcharge, 0-100% up to 5 hours Dimensions500 x 315 x 295 mm Net weight910 g Accessories
The UNI-T UTi120B thermal imaging camera includes:
- USB-A to USB-C cable
- 32 GB MicroSD card
