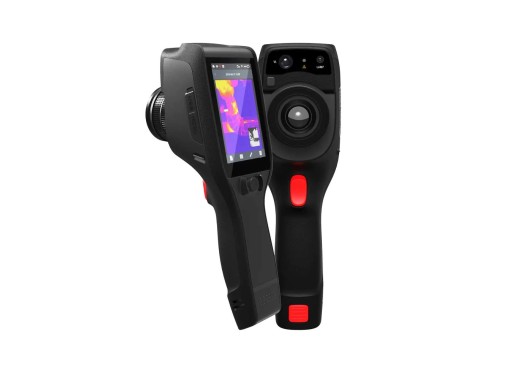

This Guide D384M thermal camera can measure the temperature in a wide range of -20°C~650°C and has a high IR resolution of 384 x 288 pixels. Its 4 inch touch screen and step-by-step professional instruction make it easy and user-friendly to operate. Moreover, the D384M can make both high-quality photo’s and videos which can be transferred via Wi-Fi to your mobile phone for further analysis. The video material can be captured in MP4 format with audio or in lrgd format for temperature analysis. What sets the D384M apart from other Guide thermal cameras is its adjustable focus feature. And, when the battery runs out, it can easily be replaced.
Additional accessories for the D384M can be ordered by contacting Eleshop through email.
Specifications Temperature range-20 to 650 °C Accuracy ±2 °C or ±2% (whichever is greater) Focal distance19 mm IR resolution384 x 288 (110592 pixels) NETD≤45 mK Frame rate25 Hz / 9 Hz FOV28° x 22° External interfaceMicro USB, Micro HDMI, DC (12V) , TF card slot Display4′ LCD Colour palettesWhite Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2 StorageLocal storage (16 GB) and TF card (16 GB and up to 128 GB) Battery4 hours Dimensions274 × 110 × 78 mm Weight≤840 g (with battery) Accessories
The D384M comes by default with:
- Lithium-ion battery
- Wrist strap
- Power adapter
- Adapter plug
- Micro USB cable
- Micro HDMI cable
- Data download card
- Capacitive screen gloves
- TF card (16 GB)
- Carrying case
