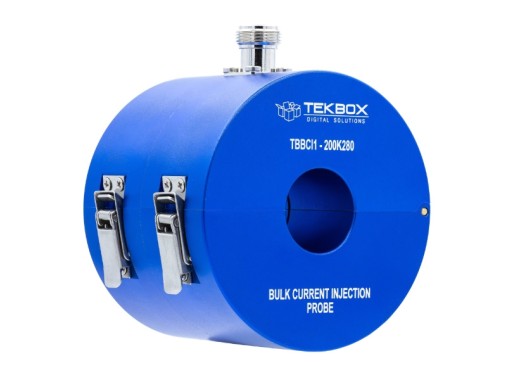

The Tekbox TBBCI1-200K280 is a bulk current injection probe characterized in the frequency range of 10 kHz to 300 MHz. The CBI probe is designed for immunity testing according to IEC/ EN 61000-4-6 standards, and in the frequency range 250 kHz — 230 MHz it is compliant with the insertion loss specifications. The insertion loss of the probe is 8 dB for most of its bandwidth, and it is possible to inject severity levels 1, 2, 3 and an arbitrary stress level up to 30 V . At last, the TBBCI1-200K280 can also be used for monitoring purposes.
We also sell the calibrator fixture for the TBBCI1-200K280 probe, the TBBCI1-CAL.
Model overview
Currently we have two Tekbox models in our catalogue, which differ in terms of their frequency range and thus their compliant standards.
ModelTBBCI1-200K280 TBBCI1-800K420 Frequency range 10 kHz — 300 MHz 10 kHz — 500 MHz Compliant standards IEC/ EN 61000-4-6 ISO 11452-4 & IEC/ EN 61000-4-6 Insertion loss (typ.) 8 dB 5 dB Price 1550 €1,550.00 Excl. VAT 1550 €1,550.00 Excl. VAT Specifications Transfer impedance 26 dB typ. Power rating Severity levels 1, 2, 3 and an arbitrary stress level up to 30 V Aperture diameter 27 mm Connector N female Outer dimensions Diameter: 92 mm Height: 76 mm Weight 1.2 kg
