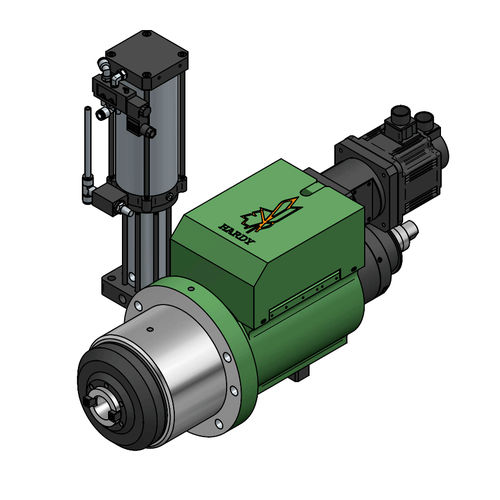

FMDC155W Built-in motor spindle unit with auto tool changer is designed for drilling and tapping with center coolant through applications. The feeding is transmitted by a C5 class ball screw and servo motor for accurate positioning. This product design provides space saving and increasing your efficiency and productivity. The spindle nose accuracy is under 0.003mm and maximum drilling capacity up to 30mm (S45C). ． Drilling Capacity 30mm ． Tapping Capacity M24 ． Maximum Stroke : 120mm ． Spindle Taper : NT40 ． Maximum RPM : 2500 ． Motor Power : 3.7 KW ． Feeding is driven by a grade C5 ball screw ． OMRON proximity switch sensors and stand are furnished ． Oil cooler is required ． Driver is required ． Encoder is Optional ． Center Through Coolant is Optional
Технические характеристики
CharacteristicsFunctiontapping, drillingOther characteristicswith automatic tool changer, servo self-feed, motorizedRotational speed
Max.: 2,500 rpm (15,707.96 rad.min-1)
Min.: 50 rpm (314.16 rad.min-1)
Diameter
Max.: 30 mm (1.2 in)
Min.: 1 mm (0 in)
