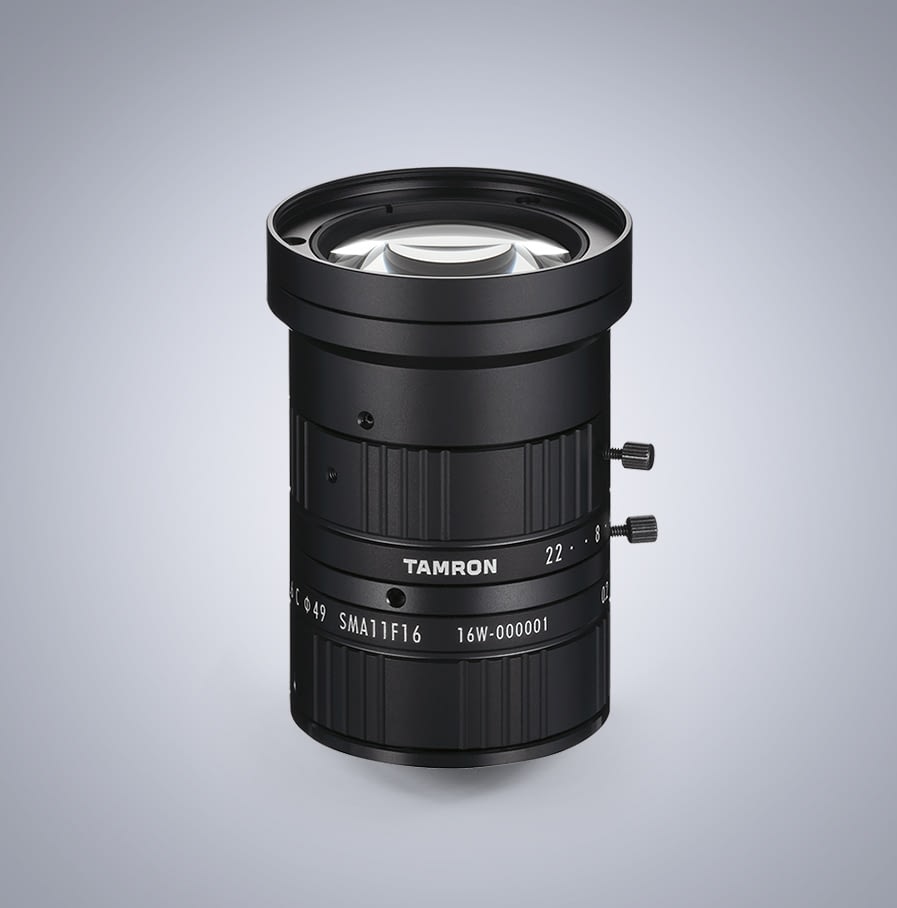

| Manufacturer Model # | Tamron SMA11F16 |
|---|---|
| LUCID SKU | TSMA160 |
| Focal Length | 16mm |
| Iris Range (f no.) | f1.6 f22 |
| Spectral Range | 400-1700nm (SWIR) |
| Angle of View (H x V) * *Mounted to 1/2 sensor cameras | 22.7° x 18.1° |
| Focus Range (from front of the lens) | ∞-200mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Filter Thread | M49 x 0.75mm* ＊Filters sold separately |
|---|---|
| Mount | C-Mount |
| Sensor Size (max.) | 1/2 (1”) |
| TV Distortion | -1% |
| Diameter | φ51 x 74.1mm |
| Weight | 260g |
| Operating Temperature | -20°C +60°C |
| Fixing Knobs Bundled | 2 total |
