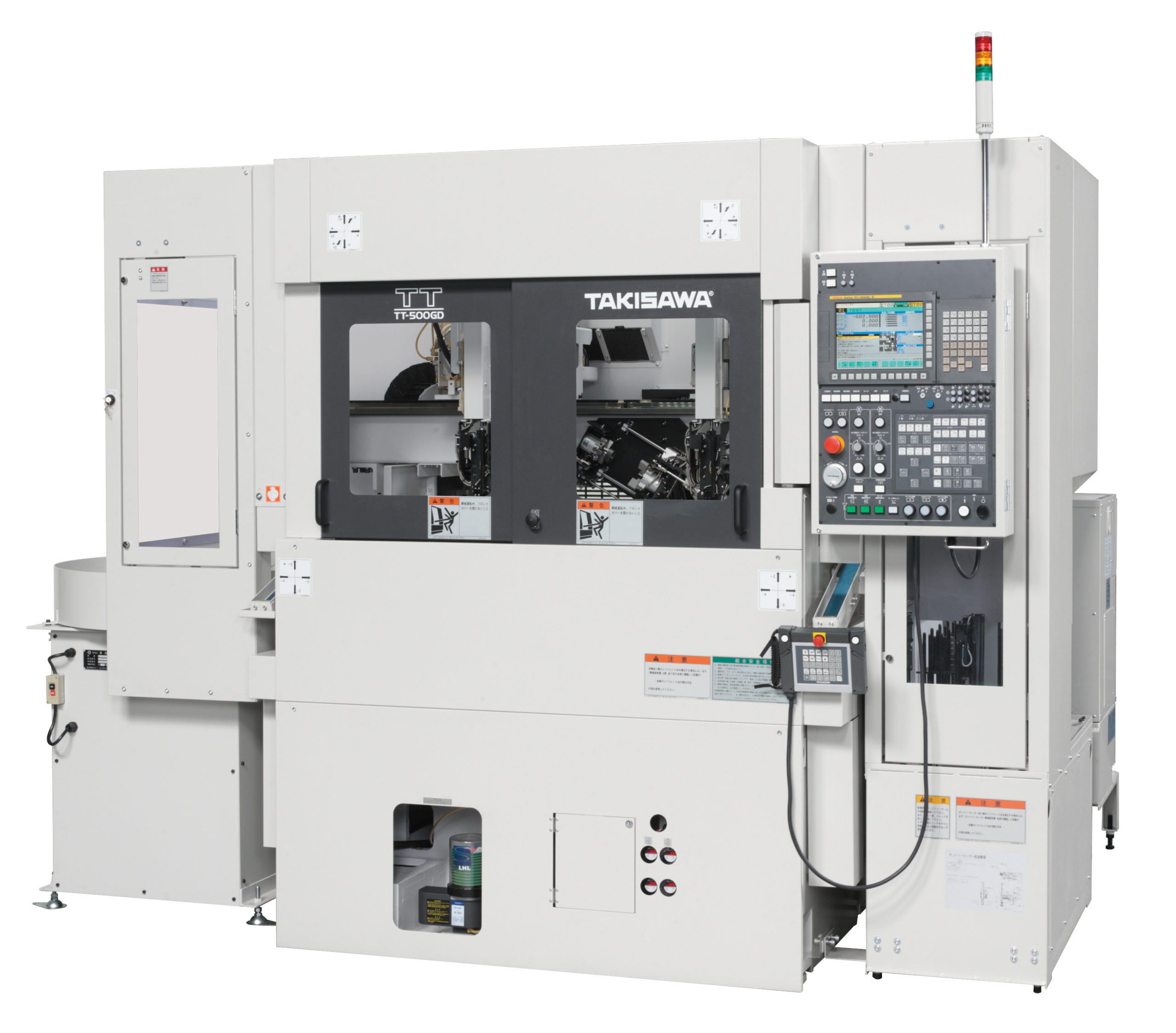

The Takisawa TT Series is a parallel twin-spindle, twin-turret CNC lathe.The spindles can be controlled independently in machining. The CM specification can integrate the processes of workpieces involving both turning and milling processes.
Технические характеристики
Specifications
TT Models
- TT-350G
T8 Distance Between Spindles 25.59′ Maximum Turning Diameter 18.11′ Maximum Turning Length 12.80′ Number of Spindles 2 Spindle Speed 3000 / 2000 / 4000 Spindle Horsepower 22 / 18.5
29.3 / 24.7Number of Turrets 2 Number of Tools 8+8 Chuck Size 12′ Control FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2) Rotating Tools — Rotating Tool RPM — Rotating Tool HP — T10 Distance Between Spindles 25.59′ Maximum Turning Diameter 18.11′ Maximum Turning Length 12.84′ Number of Spindles 2 Spindle Speed 3000 / 2000 / 4000 Spindle Horsepower 22 / 18.5
29.3 / 24.7Number of Turrets 2 Number of Tools 10+10 Chuck Size 10′ Control FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2) Rotating Tools — Rotating Tool RPM — Rotating Tool HP — T12 Distance Between Spindles 25.59′ Maximum Turning Diameter 18.11′ Maximum Turning Length 12.84′ Number of Spindles 2 Spindle Speed 3000 / 2000 / 4000 Spindle Horsepower 22 / 18.5
29.3 / 24.7Number of Turrets 2 Number of Tools 12+12 Chuck Size 10′ Control FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2) Rotating Tools — Rotating Tool RPM — Rotating Tool HP — CM Distance Between Spindles 25.59′ Maximum Turning Diameter 18.11′ Maximum Turning Length 11.08′ Number of Spindles 2 Spindle Speed 3000 / 2000 / 4000 Spindle Horsepower 22 / 18.5
29.3 / 24.7Number of Turrets 2 Number of Tools 12+12 Chuck Size 10′ Control FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2) Rotating Tools 12+12 Rotating Tool RPM 3600 Rotating Tool HP 4.9 / 1.5 - TT-500GD
Specification Detail Distance Between Spindles 27.56′ Maximum Turning Diameter 2.00′ Maximum Turning Length 2.00′ Number of Spindles 2 Spindle Speed 5000 / 8000 Spindle Horsepower 10 / 4.9 Number of Tool Posts 2 Tool Post Type Comb Type Number of Attachable Tools [Width] 5 [12.99′] Chuck Size 5′ Control FANUC Oi-TF - TT-1100G
Specification Detail Distance Between Spindles 23.62′ Maximum Turning Diameter 5.5′ Maximum Turning Length 4.76′ Number of Spindles 2 Spindle Speed 4500 / 6500 min-1 Main Spindle Motor 5.5 / 3.7
7.5 / 5.5Number of Turrets 2 Number of Tools 10+10 Chuck Size 6′ - TT-2100G TT-2100G 6”
T10 Distance Between Spindles 13.38′ Maximum Turning Diameter 9.45′ Maximum Turning Length 5.33′ Number of Spindles 2 Spindle Speed 4500 / 6000 Spindle Horsepower 10 / 7.3
14.7 / 10Number of Turrets 2 Number of Tools 10+10 Chuck Size 6′ Control FANUC Oi-TD / 31i-B Rotating Tools — Rotating Tool RPM — Rotating Tool HP — T12 Distance Between Spindles 13.38′ Maximum Turning Diameter 9.45′ Maximum Turning Length 5.33′ Number of Spindles 2 Spindle Speed 4500 / 6000 Spindle Horsepower 10 / 7.3
14.7 / 10Number of Turrets 2 Number of Tools 12+12 Chuck Size 6′ Control FANUC Oi-TD / 31i-B Rotating Tools — Rotating Tool RPM — Rotating Tool HP — CM Distance Between Spindles 13.38′ Maximum Turning Diameter 9.45′ Maximum Turning Length 5.33′ Number of Spindles 2 Spindle Speed 4500 / 6000 Spindle Horsepower 10 / 7.3
14.7 / 10Number of Turrets 2 Number of Tools 10+10 Chuck Size 6′ Control FANUC 31i-B Rotating Tools 5 [Alternate] Rotating Tool RPM 2500 Rotating Tool HP 7.3 / 4.9 TT-2100G 8”
T10 Distance Between Spindles 13.38′ Maximum Turning Diameter 9.45′ Maximum Turning Length 3.70′ Number of Spindles 2 Spindle Speed 3200 / 4500 Spindle Horsepower 14.7 / 10 Number of Turrets 2 Number of Tools 10+10 Chuck Size 8′ Control FANUC Oi-TD / 31i-B Rotating Tools — Rotating Tool RPM — Rotating Tool HP — T12 Distance Between Spindles 13.38′ Maximum Turning Diameter 9.45′ Maximum Turning Length 3.70′ Number of Spindles 2 Spindle Speed 3200 / 4500 Spindle Horsepower 14.7 / 10 Number of Turrets 2 Number of Tools 12+12 Chuck Size 8′ Control FANUC Oi-TD / 31i-B Rotating Tools — Rotating Tool RPM — Rotating Tool HP — CM Distance Between Spindles 13.38′ Maximum Turning Diameter 9.45′ Maximum Turning Length 3.70′ Number of Spindles 2 Spindle Speed 3200 / 4500 Spindle Horsepower 14.7 / 10 Number of Turrets 2 Number of Tools 10+10 Chuck Size 8′ Control FANUC 31i-B Rotating Tools 5 [Alternate] Rotating Tool RPM 2500 Rotating Tool HP 7.3 / 4.9 - TT-2600G TT-2600G 8”
T10 Distance Between Spindles 17.72′ Maximum Turning Diameter 11.42′ Maximum Turning Length 8.43′ Number of Spindles 2 Spindle Speed 4000 / 3200 / 2500 Spindle Horsepower 15 / 11
20 / 14.7Number of Turrets 2 Number of Tools 10+10 Chuck Size 8′ Control FANUC Oi-TD / 31i-B Rotating Tools — Rotating Tool RPM — Rotating Tool HP — CM Distance Between Spindles 17.72′ Maximum Turning Diameter 11.42′ Maximum Turning Length 8.03′ Number of Spindles 2 Spindle Speed 4000 / 3200 / 2500 Spindle Horsepower 15 / 11
20 / 14.7Number of Turrets 2 Number of Tools 10+10 Chuck Size 8′ Control FANUC 31i-B / 32i-B Rotating Tools 5 [Alternate] Rotating Tool RPM 2500 Rotating Tool HP 7.3 / 4.9 TT-2600G 10”
T10 Distance Between Spindles 17.72′ Maximum Turning Diameter 11.42′ Maximum Turning Length 8.43′ Number of Spindles 2 Spindle Speed 3200 / 4000 / 2500 Spindle Horsepower 18.5 / 15
24.7 / 20Number of Turrets 2 Number of Tools 10+10 Chuck Size 10′ Control FANUC Oi-TD / 32i-B Rotating Tools Rotating Tool RPM Rotating Tool HP CM Distance Between Spindles 17.72′ Maximum Turning Diameter 11.42′ Maximum Turning Length 8.03′ Number of Spindles 2 Spindle Speed 3200 / 4000 / 2500 Spindle Horsepower 18.5 / 15
24.7 / 20Number of Turrets 2 Number of Tools 10+10 Chuck Size 10′ Control FANUC 31i-B / 32i-B Rotating Tools 5 [Alternate] Rotating Tool RPM 2500 Rotating Tool HP 7.3 / 4.9
