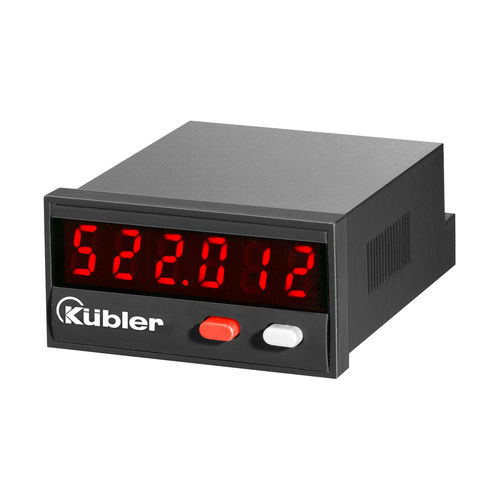

Fast counter input Optional output Exact and highly accurate frequency measuring method Dimension · 48 x 24 mm | 45 x 22 mm Power supply: · 10…30 V DC Display 6-digit number, LED Frequency display, tachometer in 1/min or 1/sec freely scalable. The Codix 522 is a power-supplied frequency display / tachometer. Display freely scalable in 1/min or 1/sec, for fast and slow counting pulses, with 6-digit LED display for NPN, PNP input signals, with fast HRA (High Rate Accuracy) measuring system. Efficient Very bright LED display, 8 mm digit height Fast counter input for input frequency of max. 60 kHz Robust housing / IP65 protection Exact and highly accurate frequency measurement method (HRA — High Rate Accuracy System) Frequencies up to 38 Hz are evaluated by a period measurement. Frequencies > 38 Hz are evaluated via a special gate time measurement. Despite a short gate time, a very high accuracy of
Технические характеристики
CharacteristicsTypetachometerDisplaydigitalTechnologyelectronicOther characteristicsmultifunction
