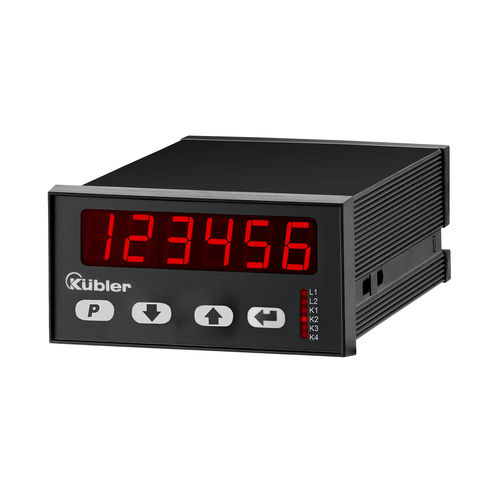

2 scalable 1 MHz encoder inputs Analog output and serial interface 4 freely programmable, fast transistor outputs Dimension · 96 x 48 mm | 92 x 45 mm Power supply: · 17…30 V DC Display 6-digit number, LED Frequency display/tachometer for differential, sum, product or ratio measurement. Frequency display for demanding tasks with two individually scalable encoder inputs, each A, /A, B, /B for counting frequencies up to 1 MHz per channel (can also be used as a single channel). Adjustable operating modes as tachometer or frequency display for difference, sum, product or ratio measurement, also with reciprocal display. Innovative 2 separate freely scalable frequency inputs: HTL or TTL (also with inverted inputs) max. input frequency 1 MHz/channel. Very bright LED display, 15 mm (6 digits). 4 freely programmable fast transistor outputs with 350 mA output current each. Many different output modes. Simple programming — with function codes, depending on the operating mode set. With 9 fixed, different frequency functions, e.g: — Single, differential and total measurement of both inputs — Product and ratio measurement — Double and percentage measurement — Run-through time from frequency (reciprocal speed)
Технические характеристики
CharacteristicsTypetachometerDisplaydigitalTechnologyelectronicOther characteristicsmultifunction
