Features:

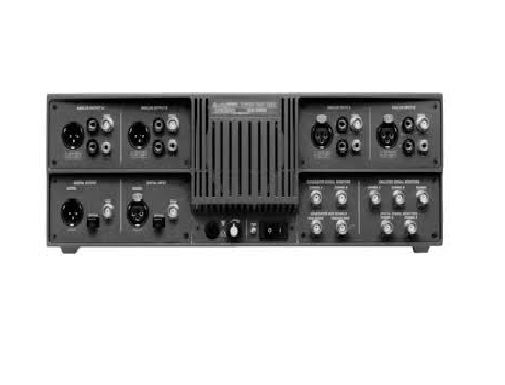

SYS-2022 System Two, 204 kHz
Two-channel (stereo) analog domain test set: generates and analyzes all signals via analog hardware.
Key analog generator specifications include spurious and harmonic specifications of -120 dB and flatness of ±0.008 dB. Analog analyzer specs feature residual noise of less than 1 microvolt (-118 dBu), flatness of ±0.008 dB and residual THD+N of -108 dB (0.0004%).
Measures amplitude, level, ratio, crosstalk, bandpass amplitude, frequency, phase, THD+N, and optionally IMD and wow & flutter
The recognized standard worldwide for audio testing, System Two is a computer controlled integrated multifunction audio testing instrument.
The image is for reference only. See product specification for details.
Технические характеристики
| Manufacturer | Audio Precision |
|---|---|
| Condition | Used |
| Frequency | 204 kHz |
