Description

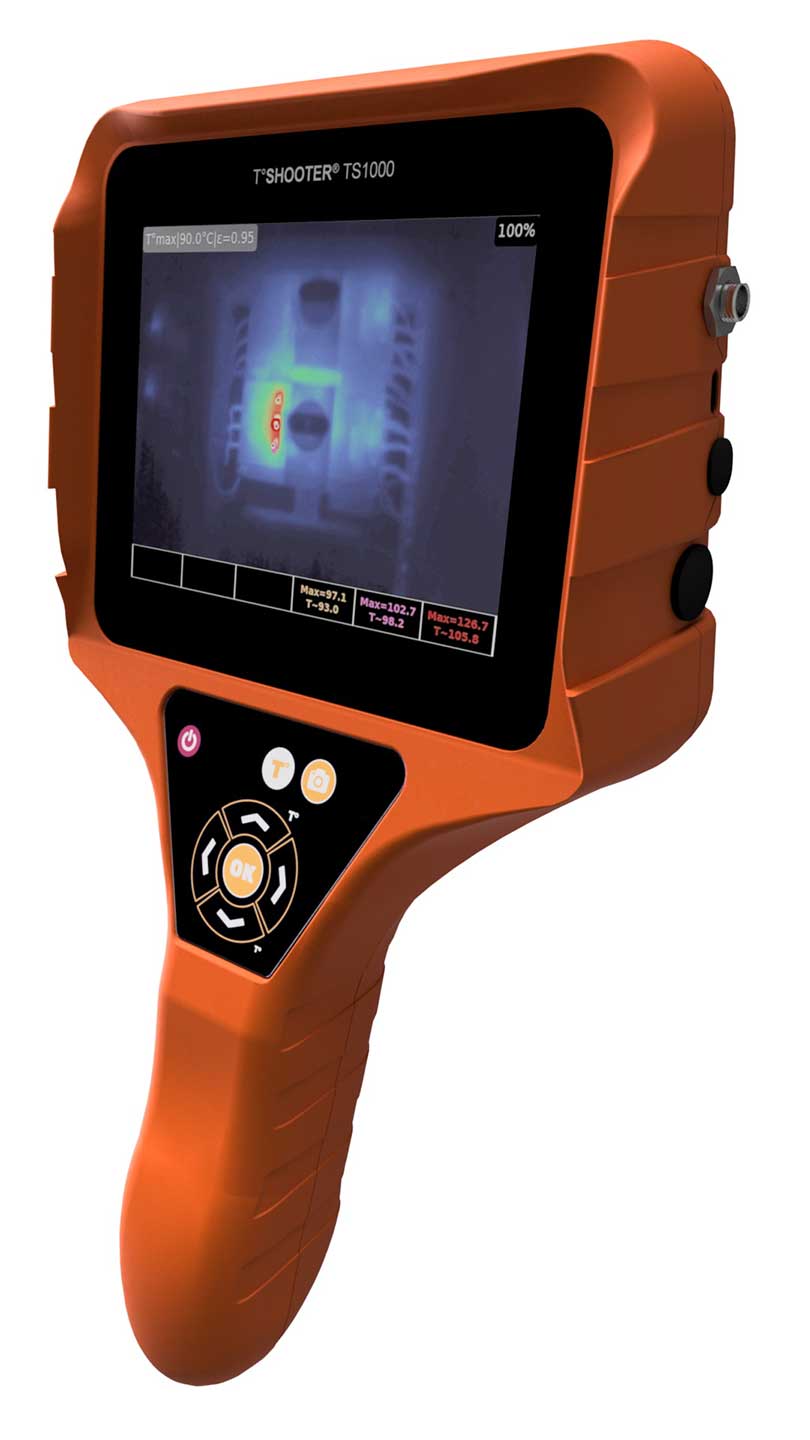

The Synergys T°SHOOTER TS1000 Thermal Contour Camera detects abnormally hot or cold temperature zones. This state of the art and new concept thermal camera (patent pending) shows the abnormal thermal contours in the visible scene to the user. The T°Shooter provides users with a more pleasant experience by offering precise and efficient measurements.
Easy to Use with Point & Shoot Image Capture
The T°SHOOTER allows users to capture, photograph, and analyze problem thermal locations. The TSHOOTER is both ergonomically designed and easier to use than an infrared thermal imaging camera. When capturing images, simply point and shoot in standard view mode or view images with a thermal overlay. Detective zones appear immediately on a scene, making it easy for users to detect abnormal temperature zones. This camera also allows users a reliable way to prevent any malfunctions in equipment by measuring and detecting abnormal temperatures in the analyzed machine, process, or electrical installation.
How the TSHOOTER Works
With the T°SHOOTER, users adjust the temperature reference parameter to >, T°max or <, T°min, and scan the tested equipment. The new thermal contour camera T°SHOOTER TS1000 immediately shows users up to 6 abnormal temperature zones on a visible scene on a large colored VGA 5.7′ LCD screen. Users can easily switch from visible to thermal imaging with 3x color palettes with the keyboard button, including iron, rainbow, black and white.
APPLICATIONS:
- Electrical Installations
- Mechanical Installations
- Process Installations
- Buildings Problems
T-SHOOTER inspecting controll panel at 60°C treshold setting. Note how exact locations of temperature differnces are outlined.
T-SHOOTER thermal image of controll panel at 60°C treshold setting. See how thermal differences correspond to outlines in previous photo.
T-SHOOTER inspecting controll panel at 90°C treshold setting. Note how exact locations of temperature differnces are outlined.
T-SHOOTER thermal image of controll panel at 90°C treshold setting. See how thermal differences correspond to outlines in previous photo.
Технические характеристики
Specs
| SPECIFICATIONS TS1000 (PATENT PENDING) | |
| Thermal Camera | FLIR LEPTON 3.5 160 x 120 pixels range of -10C to 400C |
| Color Palettes | Iron-Rainbow-B&W |
| Working Modes | Contour-Isotherm-Standard |
| EmissivitySetting | From 0.01 to 1.0 |
| Visible Camera | 5 MP |
| Display | LCD VGA color 5.7 640 x 480 pixels |
| Pictures | VGA JPEG, number, name, date and time |
| Measurements | TC or TF |
| Memory | Up to 500 pictures, can be uploaded to PC |
| Communication | USB cable supplied |
| Autonomy | 4 hours |
| Power Supply | Rechargeable Nickel-metal hybrid batteries (NiMH) |
| Power Charger | Universal DC 12V-1.5A |
| Temperature Use Range | -10C to 50C |
| Dimensions | H:310 mm W: 165 mm D: 65 mm |
| Weight | 700 gr for the TS1000 3.2 kg including ABS case |
| CE Standards | CEM 2004/108/CE: EN61000-6-4 & EN61000-6-2 |
