| Advanced Measurement Kit |
| EMI Measurement Mode |
| N-type female, 50 ? (nom.) |
| Distance To Fault Locator |
Features:
- 7.5 GHz spectrum analyzer
- 100 kHz — 7.5 GHz vector network analyzer
- -165 dBm/Hz Displayed Average Noise Level (DANL)
- <, 0.7 dB total amplitude accuracy
- Phase noise: <, -98 dBc/Hz @ 1 GHz, 10 kHz offset
- Resolution bandwidth (RBW): 1 Hz to 3 MHz
- Pre-amplifier and tracking generator are standard
- 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
- Several options included with free trial period: Distance To Fault, EMI Filter and Quasi-Peak Detector, Advanced Measurement/Waterfall Chart

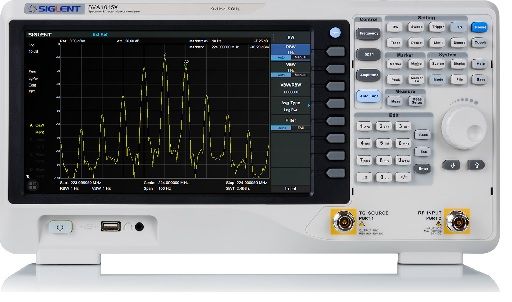

The SIGLENT SVA1000X series spectrum and vector network analyzers are powerful and flexible tools for RF signal and network analysis.
With a frequency range up to 7.5 GHz, the SVA1000X series delivers reliable automatic measurements and multiple modes of operation — the base model is both a spectrum analyzer and a vector network analyzer. Optional functions include distance-to-fault location, vector signal modulation analysis and much more.
Applications for the SVA1000X include broadcast monitoring and evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance testing, research and development, education, production, and maintenance.
Технические характеристики
| Manufacturer | Siglent |
|---|---|
| Condition | Used |
| Frequency | 7.5 GHz |
