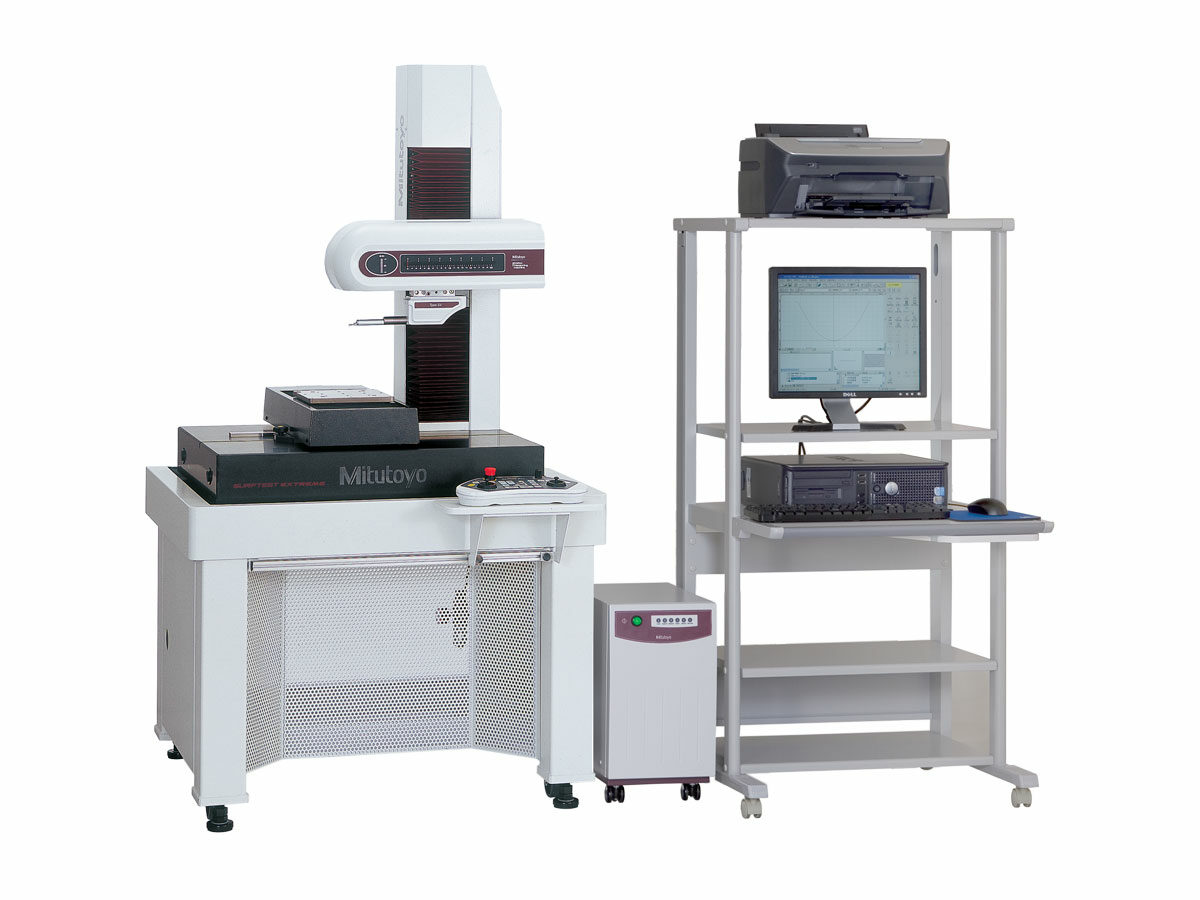

The Surftest Extreme SV-3000CNC surface roughness measuring instrument measures in both axes with high-accuracy. Each axes have the maximum drive speed of 200 mm/s, which permits high-speed positioning that will increase throughput of multiple profile/multiple workpiece measurement tasks. For models with the α-axis, it is possible to perform continuous measurement over horizontal and inclined surfaces by power tilting the drive unit. And for models with the Y-axis table, it is possible to expand the measuring range for multiple workpieces, etc., through positioning in the Y-axis direction.
- Incorporated anti-collision safety device on the detector unit will automatically stop the instrument, even if its main body collides with a workpiece or fixture
- Easy-to-operate remote box allows the operator to conduct movements by selecting the axis icon and then using the designated joystick
- Communication with the data processing/analysis section is via USB
- Using optional rotary table Θ1 and Θ2 designed to use with the CNC models enables it to expand the CNC measurement application range
| Order No.: | Product Image: | Column vertical travel: | Main Unit Dimensions: | Main Unit Mass: | |
|---|
| 178-508-13 | — | 12″ / 300mm | 31.5 x 24.4 x 39.4″/ 800 x 620 x 1000mm | 529lbs / 240kg |
| 178-509-13 | — | 12″ / 300mm | 31.5 x 24.4 x 39.4″/ 800 x 620 x 1000mm | 529lbs / 240kg |
| 178-528-13 | — | 20″ / 500mm | 31.5 x 24.4 x 47.2″/ 800 x 620 x 1200mm | 551lbs / 250kg |
| 178-529-13 | — | 20″ / 500mm | 31.5 x 24.4 x 47.2″/ 800 x 620 x 1200mm | 551lbs / 250kg |
| 178-508-13 |
| 178-509-13 |
| 178-528-13 |
| 178-529-13 |
Технические характеристики
| Range X-Axis: | 8′ / 200mm |
|---|
| Resolution X-Axis: | 1.97μin / .05μm |
|---|
| Measuring Method: | RT Linear encoder |
|---|
| X-axis Drive speed (max. CNC): | 7.87in/s / 200mm/s |
|---|
| X-axis Drive speed (manual joystick): | 0 — 2.0in/s / 0 — 50mm/s |
|---|
| Measuring Speed: | .00078 — .078 in/s / .02 — 2 mm/s |
|---|
| Traversing Direction: | Backward |
|---|
| Alpha-axis resolution: | .000225° |
|---|
| Alpha-axis rotating speed: | 1rpm |
|---|
| Column resolution: | 1.97μin |
|---|
| Column Resolution: | 0.05μm |
|---|
| Z2-axis Measuring Method: | RT Linear encoder |
|---|
| Column Z2-axis drive speed (max. CNC): | 7.87in/s / 200mm/s |
|---|
| Z2-axis drive speed (manual joystick): | 0 — 2.0in/s / 0 — 50mm/s |
|---|
| Detector Z-Range: | 320, 3200, 32000μin / 8, 80, 800μm |
|---|
| Detector Z-Range Resolution: | .004, .04, .4μin / .0001, .001, .01μm |
|---|
| Detection Method: | Differential inductance |
|---|
| Measuring Force: | .75mN |
|---|
| Y-axis measuring range: | 8′ / 200mm |
|---|
| Y-axis measuring resolution: | 1.97μin / .05μm |
|---|
| Y-axis measuring method: | RT Linear encoder |
|---|
| Y-axis drive speed (max. CNC): | 7.87in/s / 200mm/s |
|---|
| Y-axis drive speed (manual joystick): | 0 — 2.4in/s / 0 — 60mm/s |
|---|
| Y-axis max. load capacity: | 44lbs / 20kg |
|---|
| Y-axis table size: | 7.87×7.87′ / 200x200mm |
|---|
| Y-axis Dimensions: | 12.6×25.4×4.1′ / 320x646x105mm |
|---|
| Y-axis unit Mass: | 77lbs / 35kg |
|---|
