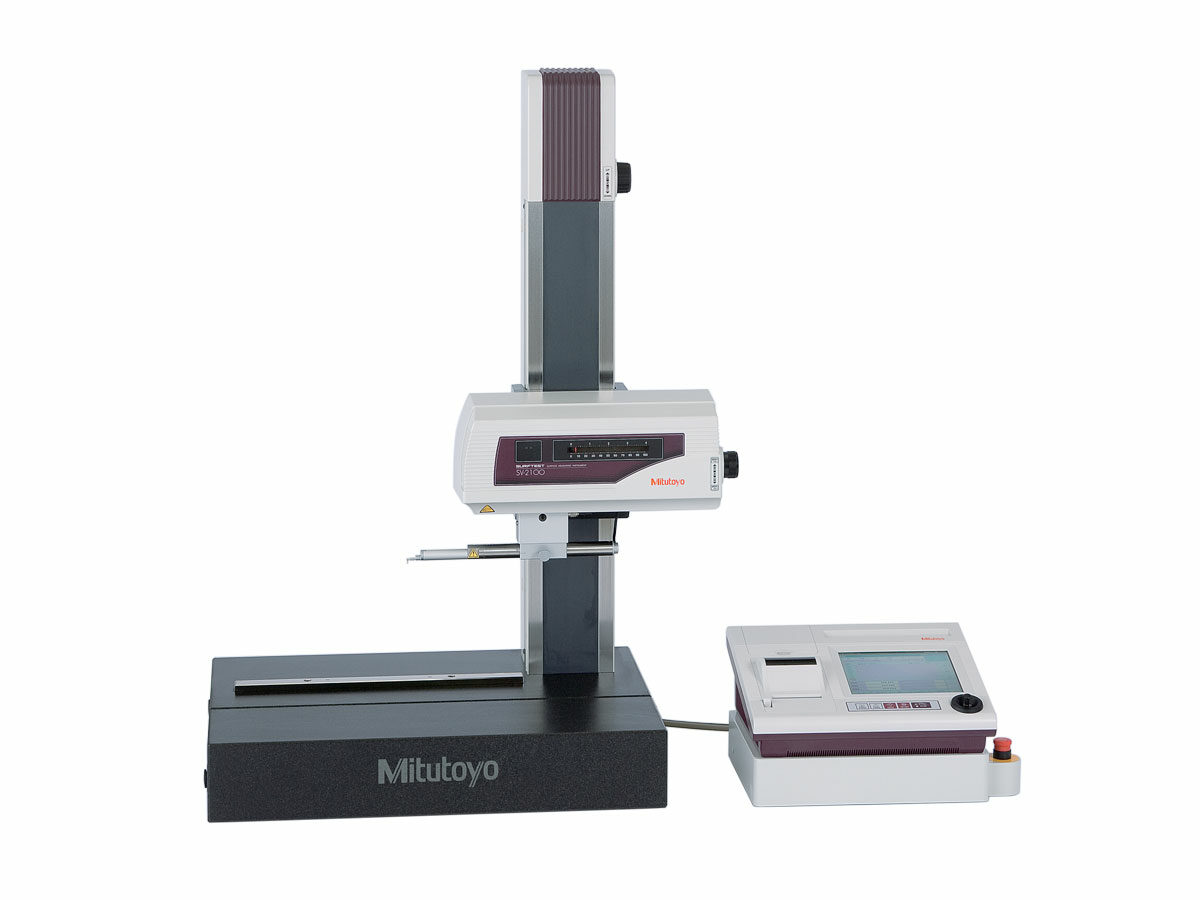

The Surftest SV-2100 is a high-precision and high-performance surface roughness tester with a dedicated control unit, achieving user-friendly display and simple operation. The Surftest SV-2100 surface tester provides highly accurate analysis of surface roughness and fine contours.
- User-friendly display and simple operation equipped with a highly visible color 7.5-inch TFT LCD
- Absolute scale system allows easy and accurate positioning for multiple measurements with high repeatability
- A built-in joy stick dedicated to the control unit allows easy and quick positioning
- Fine positioning of a small stylus, required for measuring the inner side of a small hole, can be easily made using the manual knob
- Simple input function allows inputs according to drawing instruction symbols, for ISO/JIS roughness standards, allowing for simple selection of surface roughness measuring conditions
| Order No.: | Product Image: | Z2-axis column: | Column vertical travel: | Dimensions: | Main Unit Mass: | |
|---|
| 178-637-01A | — | Manual | 13.8″ / 350mm | 28.2×17.7×34″ / 716x450x863mm | 308.6lbs / 140kg |
| 178-681-01A |  | Power | 13.8″ / 350mm | 28.2×17.7×38″ / 716x450x966mm | 308.6lbs / 140kg |
| 178-683-01A | — | Power | 21.6″ / 550mm | 28.2×17.7×46″ / 716x450x1166mm | 330lbs / 150kg |
| 178-685-01A | — | Power | 21.6″ / 550mm | 44×17.7×46.3″ / 1116x450x1176mm | 485lbs / 220kg |
| 178-637-01A |
| 178-681-01A |
| 178-683-01A |
| 178-685-01A |
Технические характеристики
| Range X-Axis: | 3.94′ / 100mm |
|---|
| Resolution X-Axis: | 1.97μin / 0.05μm |
|---|
| Measuring Method: | Linear encoder |
|---|
| Drive speed: | 0 — 1.57 in/s / 0 — 40 mm/s |
|---|
| Measuring Speed: | .00078 — .2 in/s / .02 -5 mm/s |
|---|
| Traversing Direction: | Backward |
|---|
| Column Resolution: | 1μm |
|---|
| Z2-axis Measuring Method: | Rotary encoder |
|---|
| Column Z2-Axis Drive Speed: | 0 — .78in/s / 0 — 20mm/s |
|---|
| Detector Z-Range: | 320, 3200, 32000μin / 8, 80, 800μm |
|---|
| Detector Z-Range Resolution: | .004, .04, .4μin / .0001, .001, .01μm |
|---|
| Detection Method: | Skidless / Skid |
|---|
| Measuring Force: | .75mN |
|---|
| Skid Radius of Curvature: | 1.57′ / 40mm |
|---|
| Detector Type: | Differential inductance |
|---|
| Power Supply: | AC power |
|---|
| Printer: | Built-in thermal |
|---|
| External I/O: | Digimatic ouput, RS-232C I/F |
|---|
| External Data Storage: | Micro SD card |
|---|
| Display Unit: | 13×10.6×3.7′ |
|---|
| Drive Unit: | 14.6×9.6×2.8′ / 372x245x71.8mm |
|---|
| Display Unit Mass: | 8.8lbs /4kg |
|---|
| Drive Unit Mass: | 6.6lbs / 3kg |
|---|
