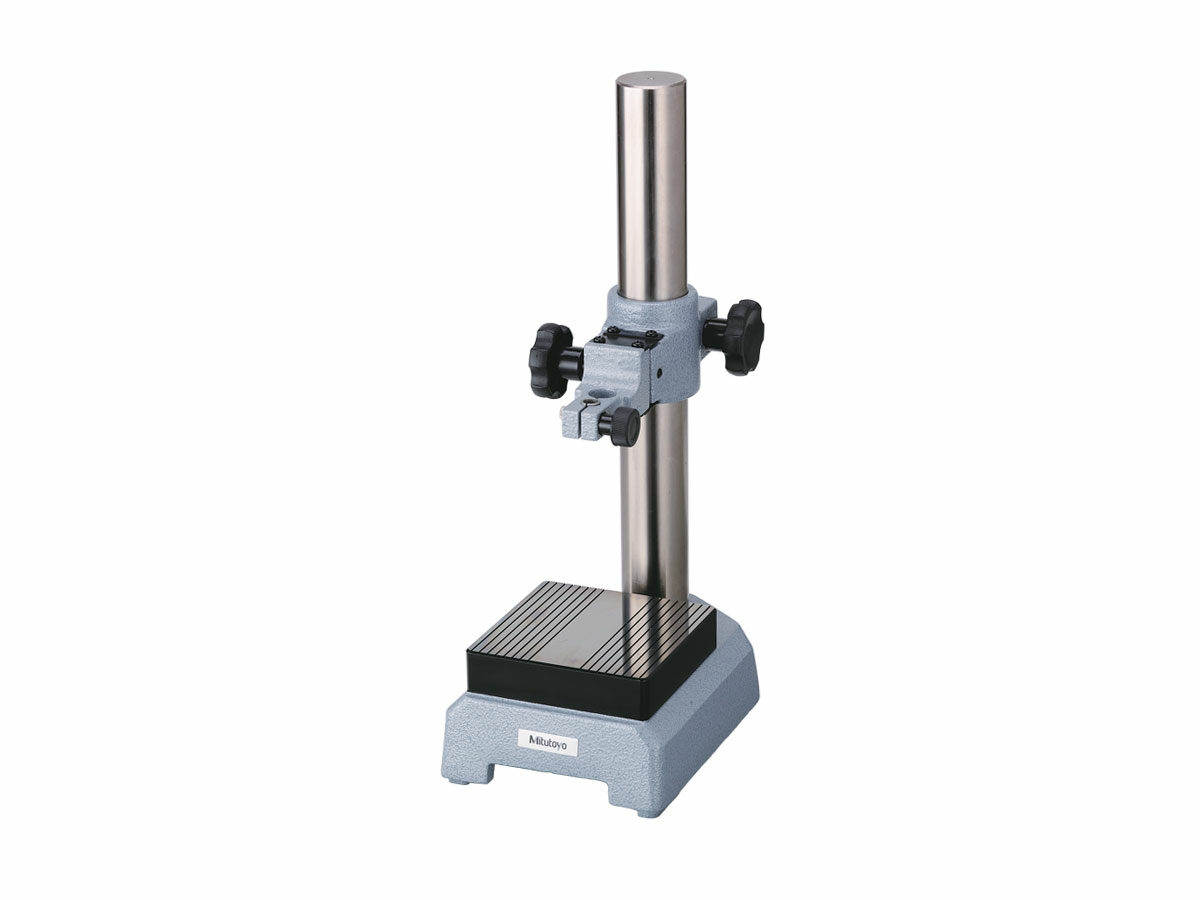

The Mitutoyo comparator stand has a stable, cast-iron base to enable more precise measurements. The partially serrated anvil prevents flat workpieces from wringing to it while promoting exceptional flatness (2.3µm or better). The threaded column is precision ground for smoother, easier course and fine movements.
- Available in two different column travel lengths and anvil sizes
- Model 215-505-10 features fine adjustment over the entire column travel
- Cast-iron base provides stable measurement platform
| Order No.: | Product Image: | Square anvil size: | Column travel: | Stem hole diameter: | Remarks: | Optional Accessories: | |
|---|
| 215-405-10 | — | 110 X 110mm | 235mm | 8, 9.53mm | With fine adjustment of 1mm range | — |
| 215-505-10 | — | 150 X 150mm | 275mm | 8, 9.53, 20mm | With fine adjustment over the entire travel | — |
