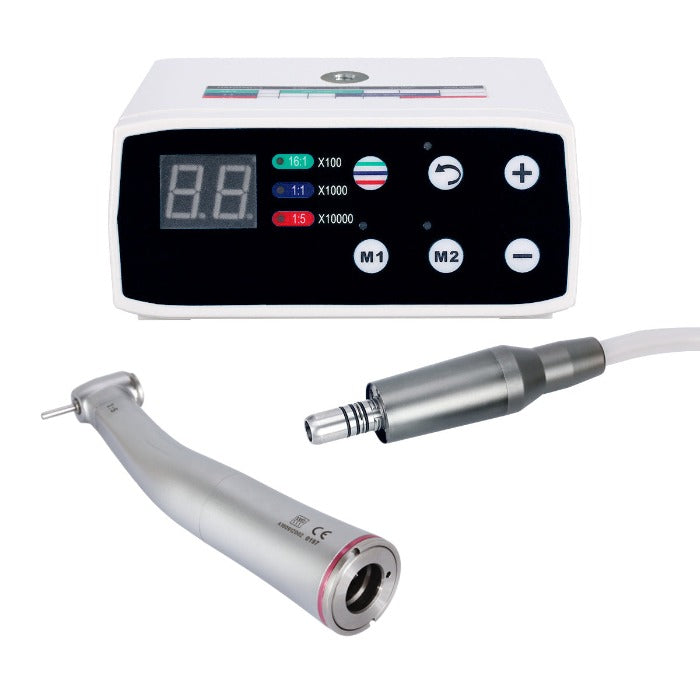

Dental LED Brushless Micro Motor And 1:5 Increasing Contra Angle Handpiece
Type of motor: brushless motor. Internal Spray. Three optional settings (1:1/1:5/16:1). Rotation: 2,000-40,000rpm. 2000rpm-40000rpm(1:1). 100rpm-2500rpm(16:1). 10000rpm-200000rpm(1:5)
| Torque: | 3.4Ncm |
| Power input: | AC 100-240V |
| Size of motor: | φ22xL71 mm |
| Weight of motor: | 71g |
| Noise level: | <,60dB |
| Size of control device: | L150.00 x W128.00 x H55.00mm |
| Total weight: | 1.25kg |
| Connector: | ISO-E type |
| Handpiece Water Spray: | Internal four way spray |
| Handpiece Gear Ratio: | 1:5 |
| Rotation Speed: | Max.200,000rpm/min |
| Bur Applicable: | Φ1.59-1.60mm |
| Chuck Type: | Push Button |
| Micromotor: | 1 PC |
| Control unit: | 1 PC |
| Micromotor tube: | 1 PC |
| Power adaptor: | 1 PC |
| Operation manual: | 1 PC |
| Handpiece: | 1 PC |
Технические характеристики
| Torque: | 3.4Ncm |
| Power input: | AC 100-240V |
| Size of motor: | φ22xL71 mm |
| Weight of motor: | 71g |
| Noise level: | <,60dB |
| Size of control device: | L150.00 x W128.00 x H55.00mm |
| Total weight: | 1.25kg |
| Connector: | ISO-E type |
| Handpiece Water Spray: | Internal four way spray |
| Handpiece Gear Ratio: | 1:5 |
| Rotation Speed: | Max.200,000rpm/min |
| Bur Applicable: | Φ1.59-1.60mm |
| Chuck Type: | Push Button |
