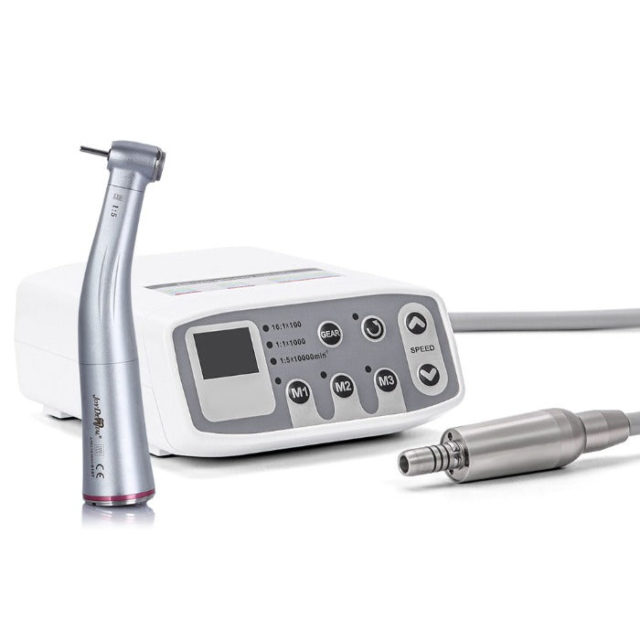

Dental LED Brushless Electric Micro Motor+1:5 LED Increasing Contra Angle Handpiece. Integrated handpiece tube, more durable, anti-static, high temperature resistance. User-friendly with three memory mode. Compatible with E-type handpieces for surgical, low speed, endo, and a variety of other dental applications. High performance brushless motor with greater torque and lower noise. Low vibration enables more precise tooth preparation.
- High performance brushless motor with greater torque and lower noise.
- Low vibration enables more precise tooth preparation.
- Low temperature rising, with internal irrigation.
- Integrated handpiece tube, more durable, anti-static, high temperature resistance.
- User-friendly with three memory mode.
- Autoclavable micromotor, easy disassemble and assemble.
- Compatible with E-type handpieces for surgical, low speed, endo, and a variety of other dental applications.
- Compared with air motor, aerosol formation is less, safety and health maintenance are strengthened to achieve better therapeutic effect
|
| Micro Motor Specifications |
| Type of motor: | Brushless Motor |
| Spray: | Internal Spray |
| Three optional settings: | 1:1/1:5/16:1 |
| Rotation: | 2000rpm-40000rpm(1:1)
100rpm-2500rpm(16:1)
10000rpm-200000rpm(1:5) |
| Power input: | AC 100-240V |
| Weight of motor: | 2.72 oz (77g) |
| Noise: | <,60dB |
| Illuminate: | LED |
| Packing weight: | 1.215kg |
| Connector: | ISO-E type |
| Contra Angle Specifications |
| Gear Ratio: | 1:5 |
| Rotation Speed: | Max.200,000rpm/min |
| Noise: | ≤60dB |
| Bur Applicable: | Φ1.59-1.60mm |
| Connector: | E-type |
| Chuck Type: | Push Button |
| Water Spray: | Internal four way spray |
| Package: | Handpiece：1PC/Box |
| Autoclavable: | Yes |
| Micromotor: | 1Pc
|
| Control unit: | 1Pc |
| Power adaptor: | 1Pc |
| Operation manual: | 1Pc |
Технические характеристики
| Type of motor: | Brushless Motor |
| Spray: | Internal Spray |
| Three optional settings: | 1:1/1:5/16:1 |
| Rotation: | 2000rpm-40000rpm(1:1)
100rpm-2500rpm(16:1)
10000rpm-200000rpm(1:5) |
| Power input: | AC 100-240V |
| Weight of motor: | 2.72 oz (77g) |
| Noise: | <,60dB |
| Illuminate: | LED |
| Packing weight: | 1.215kg |
| Connector: | ISO-E type |
