Note: 1. Our X Ray Sensors support most customer management systems. If you receive the product that cannot be successfully matched with your customer management system, please contact our customer service and we will help you.
2. The display resolution requirement is 1440*900 or above

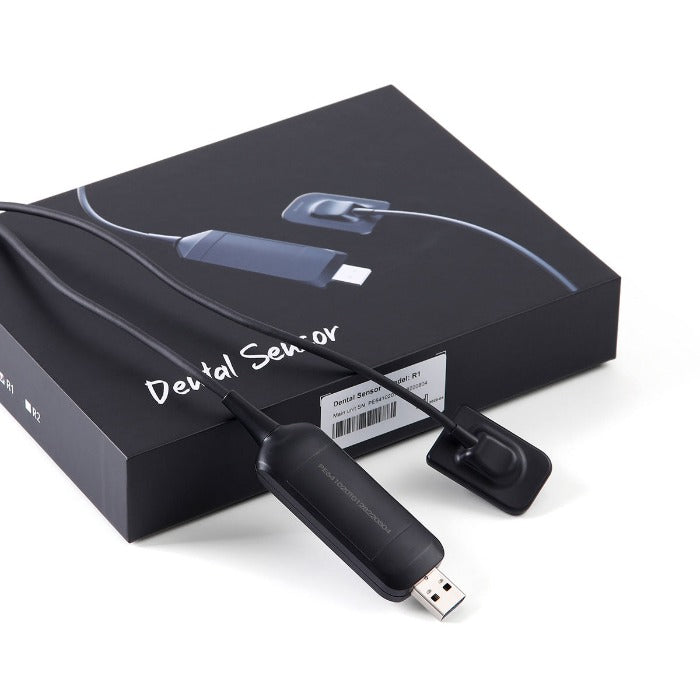

Dental Digital RVG X-Ray Sensor Imaging Systems R1 Size 25.4×38.2×4.4mm 20-25lp/mm. Reliable, durable material and components. 4.4mm sensor, enables maximum patient comfort. CMOS Detector technology with CSI scintillator, ensures optimal resolution and low dose clinical imaging. AED Technology, automatic exposure detection,fast imgaing, easy workflow, compatible with different x ray generators. High speed direct USB interface, easy to connect to PC without needing an addtional control box.
- If there»s only one device, you may select “Single-User” installation. If the sensor is connected to multiple device, select “Host” for the device connected with the sensor and other devices select “Extension” to install, to achieve multi-machine sharing.
- With rounded corners and a thickness of only 4.4mm, making it more comfortable to use.
- Cables are durable，have been tested for 80,000+ bends.
- CMOS detector technology with CSI scintillator. Ensures optimal resolution Low dose clinical imaging.
- Compatible with different X-ray generators, easy to use.
- No consumables and more cost-effective than traditional film.
- Warning：product does come with its own imaging program. Can»t be compatible with DEXIS.
|
| Hardware and Software Requirement |
| Processor: | 1.0GHz or above |
| Memory: | 2GB or above |
Hard disk,
| 64GB or above |
| Display resolution, | 1440*900 or above |
| USB port, | USB2.0 |
| Operating system, | Windows 7 or above |
| Model: | R1 |
| Detector Technology: | APS CMOS |
| Scintillator: | CsI |
| Theoretical Resolution: | 25lp/mm |
| True Resolution: | 20lp/mm |
| Pixel Matrix: | 1000*1500 |
| Active Area(mm): | 20*30 |
| Mechanical Size(mm): | 25.4*38.2*4.4 |
| Data interface: | USB 2.0 |
| AD Conversion(bit): | 16 |
| Protection: | IP68 |
| Sensor | USB flash disk (Software) |
| Sensor holder | Protective sleeve |
| Dongle | |
Технические характеристики
| Processor: | 1.0GHz or above |
| Memory: | 2GB or above |
| Hard disk, | 64GB or above |
| Display resolution, | 1440*900 or above |
| USB port, | USB2.0 |
| Operating system, | Windows 7 or above |
