Note: Our X Ray Sensors support most customer management systems. If you receive the product that cannot be successfully matched with your customer management system, please contact our customer service and we will help you.

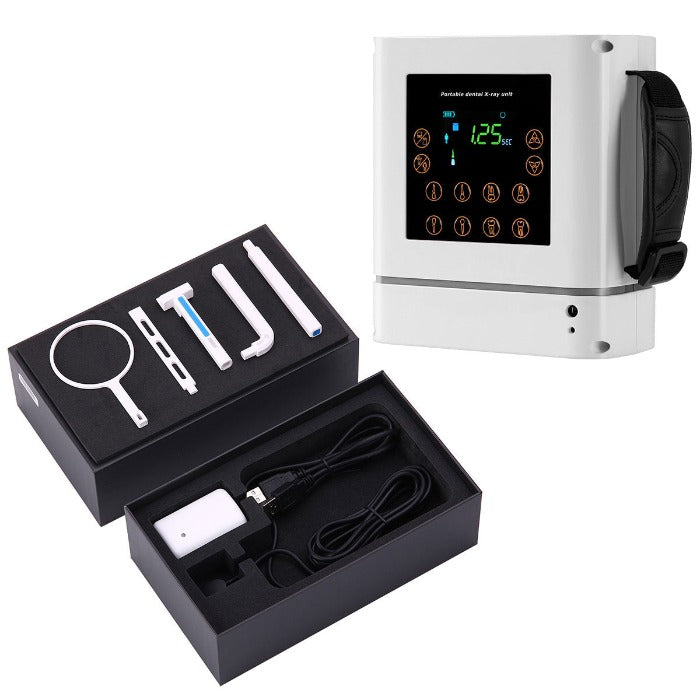

Portable Dental X-ray Machine RAY-200:
- This portable dental X-ray machine is high frequency machine.
- The body is small, light weight and nearly no radiation.
- It has excellent image quality, portable storage, save more space.
- It uses high frequency and DC international power supply.
- All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
- There are also manual buttons installed on the surface of shell, as well as batteries and charges.
- This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery.
- It also can connect with sensor, is great convenience.
- The battery is durable, it can take about 5 hundred images after fully charged.
- It can be connected with intra-oral digital X-ray imaging system.
Warning:
- After turning on the machine, wait for 1 minute, the voltage can be stabilized before normal use, After each photo taking, you need to wait for the normal value to return before taking a normal photo.
X Ray RVG Sensor XVS2121:
- The product is mainly composed of a sensor, an adaptor, a USB connection cable and workstation software. Working together with an X-ray equipment, the Product is intended to make X-ray radiography in dental clinics or veterinary clinics，Sensor size Suitable for child（adult single tooth）and pets.
| X Ray Machine Technical Parameter |
| Tube Voltage: | 60KV |
| Tube Current: | 2mA |
| Exposure Time: | 0.1~2.0s |
| Frequency: | 30KHz |
| Rate Power: | 120VA |
| Distance From Skin To Cone: | 118mm |
| Tube Focus: | 0.4mm×0.4mm |
| Battery: | DC14.8V 2200mAh |
| Charger Input Voltage: | AC100V-240V±10% |
| Output Voltage: | DC16.8V |
| Ambient Temperature: | 5℃~40℃ |
| Relative Temperature: | <,75%RH |
| X Ray Machine Packing List |
| Main Body: | 1pc |
| Charger: | 1pc |
| User Manual | 1pc |
| X Ray Sensor Technical Parameter |
| Product Model: | XVS2121 |
| Operating Voltage: | 5VDC |
Input Power,
| 500mW |
| Spatial Resolution, | ≥7Lp/mm |
| Image Uniformity, | ≤2% |
| Effective Image Area, | 20.16*20.16mm |
| Sensor Size, | 26.5mm×32mm×6mm |
| Adaptor Size, | 60mm×40mm×29.2mm |
| Total Cable Length, | 3 m (sensor cable + control box cable to PC) |
| Low Contrast Resolution, | Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil |
| Warranty, | 1 Year |
| X Ray Sensor Packing List |
| Digital Sensor: | 1 Set |
| USB Cable: | 1PC |
| U Disk: | 1 PC |
| Sensor Locator Holder: | 1 Set |
| Aluminum Plate: | 1 PC (40*40*6 mm) |
| Silicon Loop: | 1 PC |
| Sensor Holder: | 1 PC |
| X Ray Sensor Hardware Requirements |
| Central Processor: | Intel Core i3 or higher |
| Internal Memory: | 4GB or higher |
| Hard Disk: | 80GB or higher |
| Display: | 1280X1024 |
| USB interface: | Two |
| Keyboard: | One |
| Mouse: | One |
| X Ray Sensor Software Requirement |
| Operating Software: | Windows 7 SP1,8,10 32/64bit |
| Runtime: | Net Framework 4.6 or higher, VC++ 2015 |
Технические характеристики
