The SM-8TP stereo microscope provides precise and clear images. A stereo microscope provides an in-depth image, making it possible to solder SMD components for example.
Trinocular and simul-focal
The SM-8TP is trinocular, which means that there is a third port available to connect a camera with the help of the C-mount adapter. The SM-8TP is simul-focal, so the camera can be used simultaneously with the two eyepieces.
7x to 45x magnification
The SM-8TP microscope offers a magnification from 7x to 45x at a maximum working height of 100mm. For use with electronics it is best to use a barlow lens 0.5x. This halves the magnification of the microscope and doubles the working distance (the distance between the lens and the working platform).

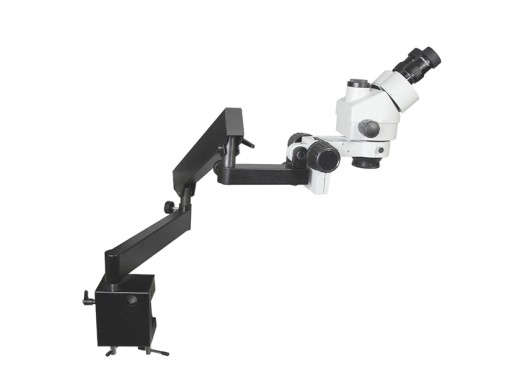

Swivel arm
The microscope has a swivel arm that can be positioned freely. The arm is clamped on a table (maximum thickness of the tabletop: 50mm).
SM series microscopes
SM series microscopes are characterised by their solid manufacturing quality, clear vision and high ease of use. The table below shows the differences between the microscopes.
Model SM-3T SM-3TP SM-4T SM-4TP SM-4TP Black SM-8TP Arm Single Single Dual Dual Dual Swivel Simul-focal No Yes No Yes Yes Yes Included accessories — — — — 60 LED ring lighting,
Barlow lens 0.5x,
Premium rubber eyepieces — Price 342.15 €342.15 Excl. VAT 400.83 €400.83 Excl. VAT 400.83 €400.83 Excl. VAT 463.64 €463.64 Excl. VAT 536.36 €536.36 Excl. VAT 457.02 €457.02 Excl. VAT Specifications TypeSM-8TP Max. range20 mm Dioptre correction+/- 5dp Pupil spaceAdjustable (55-75 mm) Shipping weight~ 15kg SKUSZM7045XT-STL6 Accessories LED ring lighting Without illumination, it can get very dark under a microscope. So don’t forget to order lighting. Led-ring 40.5 €40.50 Excl. VAT Info Add to Cart Barlow lens 0.5x A barlow lens is mounted at the bottom of the microscope’s lens, halves the microscope’s magnification and doubles the working distance (the distance between the lens and the working platform). Barlow lens 0.5x 32.23 €32.23 Excl. VAT Info Add to Cart C-mount adapter 0.35x A 0.35x C-mount adapter enables you to connect a camera to the microscope. C-mount adapter 0.35x 48.76 €48.76 Excl. VAT Info Add to Cart 2K camera A camera with HDMI output and storage capabilities with 2K resolution. If one would need a camera with a higher resolution, we would recommend the 4K camera. 2K camera 205.79 €205.79 Excl. VAT Info Add to Cart Premium rubber eyepieces Rubber eyepieces provide more comfort and reduces the incidence of light. Premium rubber eyepieces 6.61 €6.61 Excl. VAT Info Add to Cart
The microscope (tripod with arm, focus rack, eyepieces and lens) comes with rubber eyepiece protectors and a dust cover.
The following article in the knowledge centre explains the principles of the microscope for electronics inspection: The microscope: an introduction
