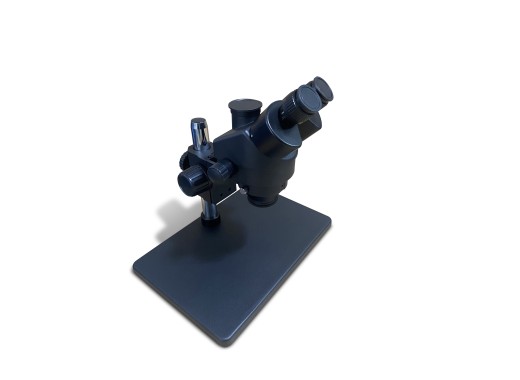

The SM-1BE stereo microscope provides precise and clear images. A stereo microscope provides an in-depth image, making it possible to solder SMD components for example.
Trinocular and simul-focal
The SM-1BE is trinocular, which means that there is a third port available to connect a camera with the help of the C-mount adapter. The SM-1BE is simul-focal, so the camera can be used simultaneously with the two eyepieces.
7x to 45x magnification
The SM-1BE microscope offers a magnification from 7x to 45x at a maximum working height of 100mm. For use with electronics it is best to use a barlow lens 0.5x. This halves the magnification of the microscope and doubles the working distance (the distance between the lens and the working platform).
Mount
The microscope has a solid base with a sound, single mount. You can install it quickly on top of, for example, a PCB or the phone you want to repair. The mount allows you to either pull the microscope up or push it down further from or closer to the object respectively.
Specifications TypeSM-1BE Max. range20 mm Dioptre correction+/- 5dp Interpupillary Distance adjustment54-76 mm Shipping weight~ 12kg Accessories LED ring lighting Without illumination, it can get very dark under a microscope. So don’t forget to order lighting. Led-ring 40.5 €40.50 Excl. VAT Info Add to Cart Barlow lens 0.5x A barlow lens is mounted at the bottom of the microscope’s lens, halves the microscope’s magnification and doubles the working distance (the distance between the lens and the working platform). Barlow lens 0.5x 32.23 €32.23 Excl. VAT Info Add to Cart C-mount adapter 0.35x A 0.35x C-mount adapter enables you to connect a camera to the microscope. C-mount adapter 0.35x 48.76 €48.76 Excl. VAT Info Add to Cart 2K camera A camera with HDMI output and storage capabilities with 2K resolution. If one would need a camera with a higher resolution, we would recommend the 4K camera. 2K camera 205.79 €205.79 Excl. VAT Info Add to Cart Premium rubber eyepieces Rubber eyepieces provide more comfort and reduces the incidence of light. Premium rubber eyepieces 6.61 €6.61 Excl. VAT Info Add to Cart
The microscope comes with rubber eyepiece protectors and a dust cover.
The following article in the knowledge centre explains the principles of the microscope for electronics inspection: The microscope: an introduction
