Стандартный циферблатный датчик натяжения

Стандартные циферблатные тензорезисторы Mitutoyo широко используются для определения контактного усилия других измерительных приборов, электрических реле, микропереключателей, клапанов и прецизионных пружин.

The Mitutoyo standard dial tension gage measures dynamic tension in Newtons to determine the contact force of measuring instruments as well as components such as electrical relays, micro-switches, valves and precision springs. The analog dial displays the present force on an easy-to-read white dial face. An anti-fraction bearing in the fulcrum helps improve measurement accuracy and repeatability. External dial indicators utilize spring-loaded jaws to make constant point contact pressure to take highly.

Available in ranges up to 5N
Displays present force as it is measured
Designed to be held in one hand during use
White dial face for easier, precise measurement readings
Crystal is glare-free with a scratch-resistant coating

Order No.:	Product Image:	Technology:	Min Range:	Max Range:	Min Reading:

Order No.:

546-112	—	Mechanical	6mN	50mN	2mN
546-113	—	Mechanical	10mN	100mN	5mN
546-114		Mechanical	30mN	300mN	10mN
546-115	—	Mechanical	0.06N	0.5N	0.02N
546-116	—	Mechanical	0.1N	1N	0.05N
546-117	—	Mechanical	0.15N	1.5N	0.05N
546-118		Mechanical	0.3N	3N	0.1N

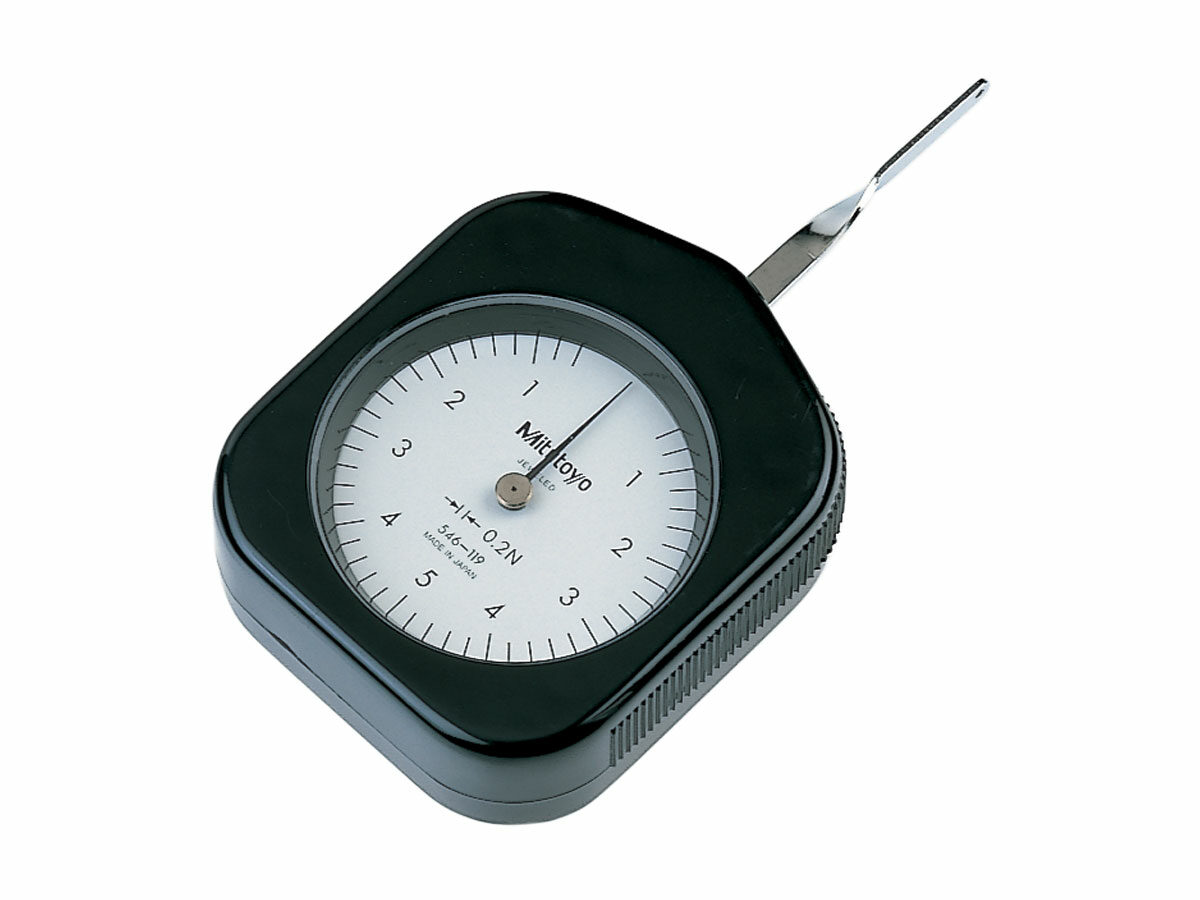

546-119		Mechanical	0.6N	5N	0.2N
