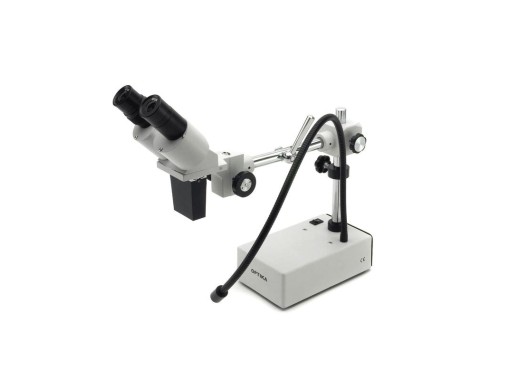

This single magnification stereo microscope is perfect for tasks that require space between the objective and the element to be inspected, like SMD soldering. The fully coated optic provides a very clear image over a wide range and in the original true colour of the displayed object.
The eyepieces stand at an angle of 45 and are adjustable in distance to correspond with the eye distance of the observer. The left eyepiece tube can also adjust the dioptre setting with a range of 5mm. The standard retractable objective has a magnification of 2X and can easily be replaced by the dovetail joint. The standard supplied 10X magnification eyepieces, together with the objective, provide a total magnificationof 20X. The image can easily be focused with a gear system and by means of the incoming light mounted on a ball joint you can illuminate from different angles.
Specifications Angle of eyepieces 45 Eyepiece magnification 10 x 20 mm Magnification retractable objective 2x W.D. 119 mm Light Halogen (12V/10W) Working distance 119 mm Pupil space 55-75mm Dioptre compensation range 5mm Range 10mm
This microscope comes with eyepiece protectors and a dust cover. The following article in the knowledge centre explains the principles of the microscope for electronics inspection: The microscope: an introduction
