Additional Features:
- RF Input Signal Frequency Range: 25 to 3000 MHz
- RF Bandwidth: 26 MHz
- Number of Independent RF Channels: 1 or 2
- RF Input Signal Level Range: +5 to -30 dBm
- RF Bandwidth Peak to Peak Typical Amplitude Variation: 1 dB
- Provides comprehensive channel models for evaluating CDMA2000 and WCDMA communications equipment
- Includes powerful, user programmable dynamic tests to accurately reproduce real-world conditions
- Expandable up to an eight branch diversity test system with full correlation control
- Vector channel model for adaptive antenna array testing
- Combines with Spirent Interference Emulator to provide programmable interference conditions across entire range of operating frequencies
- Supports JTC»94 models for indoor WLAN applications
- Large Doppler emulation range meets high-speed mobile test specifications
- Built-in and user-programmable environment models
- Wide dynamic range provides accurate results even at the lowest signal levels
Applications:
- Product Development
- System Performance Test
- Quality Assurance
- Manufacturing Test
- Product Evaluation
- Design Verification Test
- Conformance Test

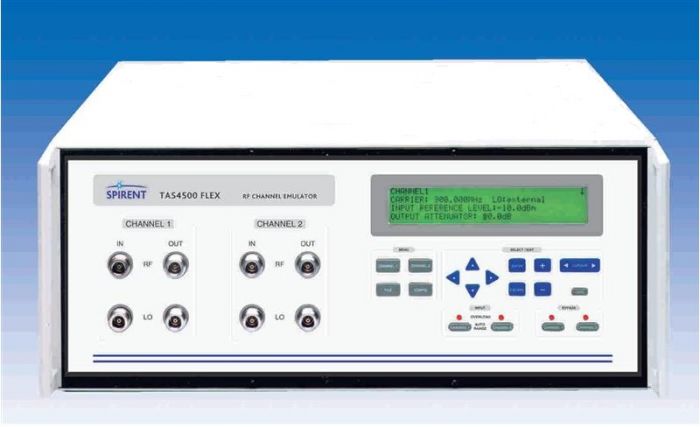

The TAS4500 FLEX5 possesses unique features to evaluate a wide range of wireless communications technologies, including WCDMA, CDMA2000, Wireless LAN, Location Based Services.
The FLEX5 provides accurate and repeatable control of RF channel characteristics such as Multi-Path Fading, Path Loss, Delay Spread, Log Normal Shadowing.
Технические характеристики
| Manufacturer | Spirent |
|---|---|
| Condition | Used |
