Optional Mitutoyo micrometer spindle attachment tips help measure odd workpieces and other part features a specific micrometer wasn»t designed to measure such as cylindrical wall thickness or into grooves, etc.
- Attachments include: ball, spline, comparator, blade, knife-edge and disc
- Ball attachments are made of hardened steel with .200” and .250” diameters which are placed on .250” and .315” diameter anvils, respectively, by rubber caps
| Order No.: | Units: | Type: | Length: | Contact Face Dimension: | Diameter: | |
|---|
| 101468 | Inch | Ball | — | — | .200” |
| 101469 | Inch | Ball | — | — | .250” |
| 208062 | Metric | Spline | 10mm | Ø2mm | — |
| 208063 | Metric | Comparator | 10mm | Ø1mm | — |
| 208064 | Metric | Blade | 10mm | 0.75mm | — |
| 208065 | Metric | Knife-edge | 10mm | 0.5mm | — |

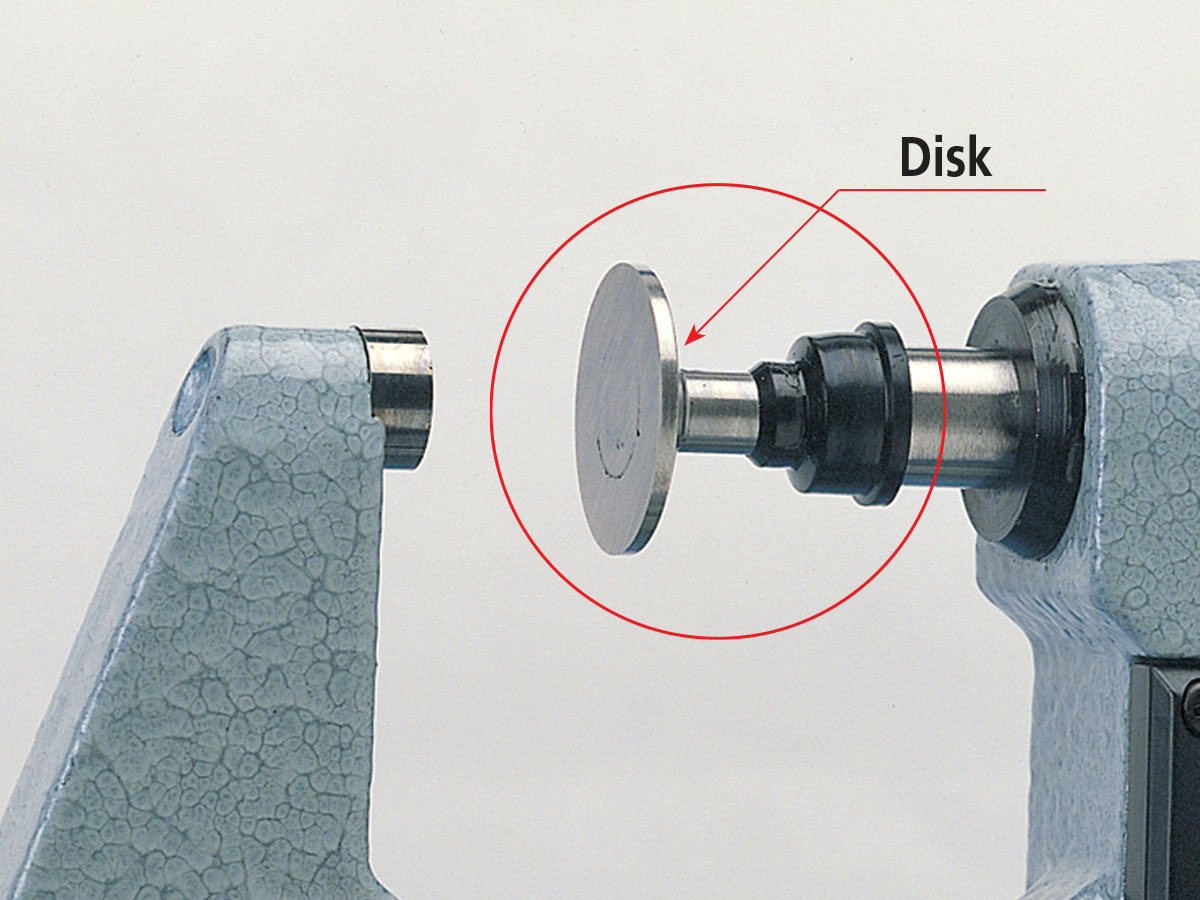

| 208066 | Metric | Disk | 10mm | Ø12.7mm | — |
| 208098 | Inch | Spline | 0.5″ | Ø0.078″ | — |
| 208099 | Inch | Comparator | 0.5″ | Ø0.039″ | — |
| 208100 | Inch | Blade | 0.5″ | 0.029″ | — |
| 208101 | Inch | Knife-edge | 0.5″ | 0.019″ | — |
| 208102 | Inch | Disk | 0.5″ | Ø0.5″ | — |
