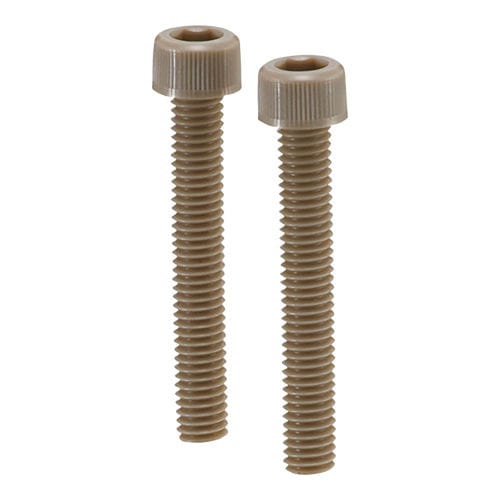

SPE series are the plastic screws made of PEEK. PEEK is a thermoplastic super-engineering plastic with excellent physical and chemical properties. These screws have excellent chemical resistance. They are mostly unaffected by chemicals excluding concentrate sulfuric acid, concentrate nitric acid, and concentrate hydrofluoric acid. These screws have excellent heat resistance, water resistance, and high heat resistance strength. With great heat resistance, it retains strength at high temperatures. It features outstanding resistance to water, wear, shock, and fatigue. It also has high flame retardance which meets the UL 94 V-0 (plastics flammability standard). Available styles: socket head, pan head, flat head, hexalobular, low profile, miniature size, set screw, hex posts, nuts, washers, plugs, rods Suitable Applications: FPD production equipment / Semiconductor devices / Printed circuit board etching devices / Metallic surface treatment equipment and facilities / Chemical plants / Transformers / Electrical and electronic equipment / Hot water pumps / Chemical pumps Main body: PEEK (Polyether Ether Ketone) Heat Resistance Temperature: 260℃* *This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque. Related Services: Cleanroom Wash & Packaging Service Screw Length Adjustment Service Please feel free to contact us for a quotation.
Технические характеристики
CharacteristicsHeadsocket headDrive typehex socketMaterialsPEEKOther characteristicsthreaded, chemical-resistant, corrosion-resistant, high-temperature, miniatureDiameter
Max.: 12 mm (0.47 in)
Min.: 3 mm (0.12 in)
Length
Max.: 40 mm (1.57 in)
Min.: 6 mm (0.24 in)
Batch size
1 unit, 5 unit, 10 unit, 20 unit
