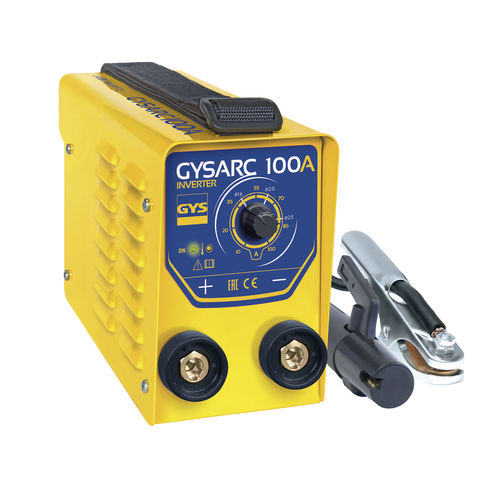

The GYSARC 100 is a single phase inverter welding machine for SMAW (MMA) welding. Manufactured using the latest IGBT inverter technology, it has excellent welding characteristics and arc stability. Weld most coated electrodes: rutile, stainless steel, cast iron and basic (up to Ø 2.5 mm). Immediate arcing thanks to high no-load voltage. Constant welding power. The continuous current makes for a very soft arc start. High stability welding current despite varying power supply voltages. Hot Start : easy arc ignition. Arc Force : allows adjustment of the current for various welding conditions and jobs. Antisticking : allows easier striking of the arc and minimises the risk of the welding rod sticking to the material. Optimised machine cooling with thermal protection. Protected against overcurrent. Ultra Lightweight (2 kg) Compact — its size means it can be stored anywhere (shelf, workstation, etc) Easy to carry using the strap as a handle or on the shoulder
Технические характеристики
CharacteristicsTechniqueSMAWConsumableselectrodePower supplysingle-phaseOther characteristicsinverterCurrent
100 A
Output frequency
50 Hz, 60 Hz
Weld thickness
2.5 mm (0.1 in)
