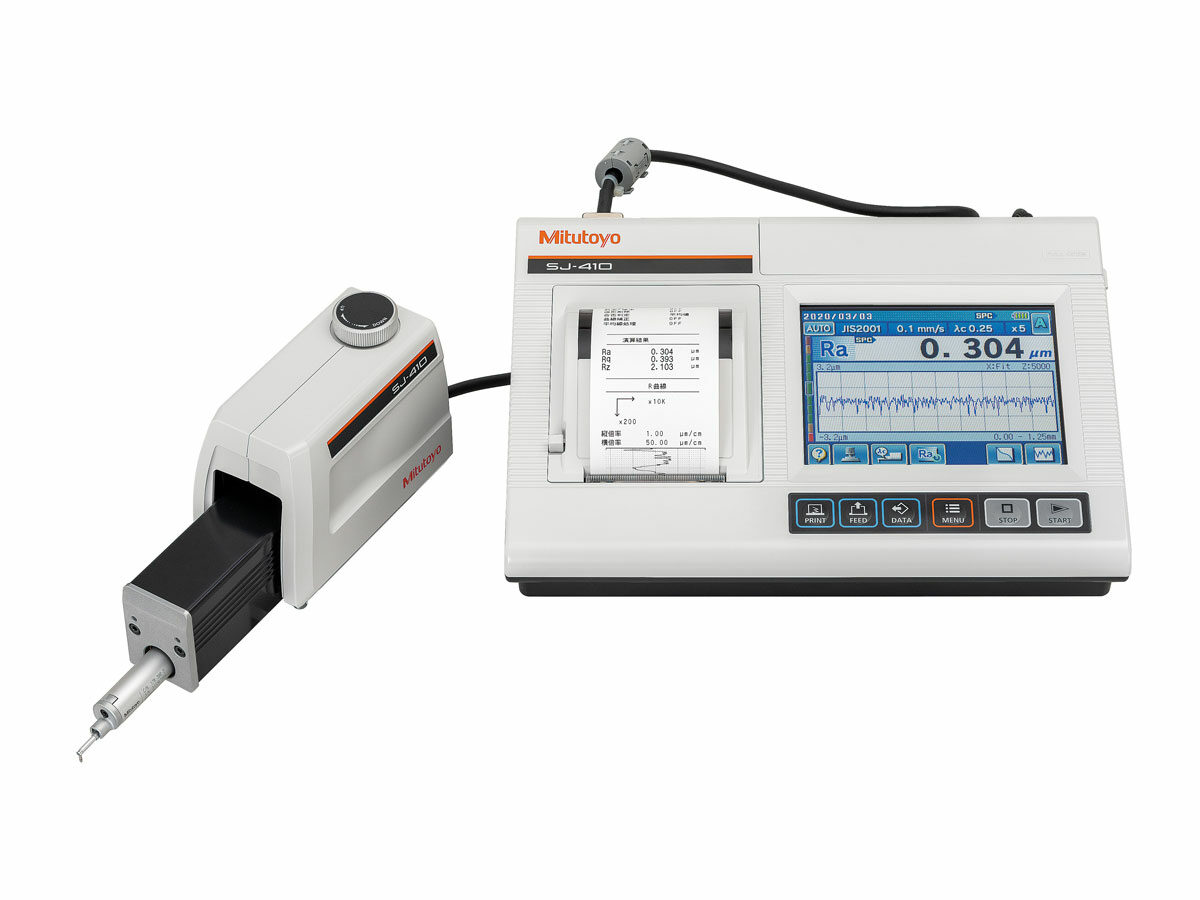

The Surftest SJ-410 surface roughness measuring instrument provides both skidded and skidless measurements. The SJ-410 surface roughness measuring instrument is equipped with 46 roughness parameters that conform to the latest ISO, DIN, ANSI and JIS standards. The unit»s high-resolution detector and drive unit provide a wide range of highly accurate measurements and ultra-fine steps. Using the unit»s skidless measurement and curved compensation functions, straightness, waviness and evaluation of cylinder surface roughness can be easily measured and evaluated.
- Built-in 5.7-inch color graphic, back-lit LCD touch-panel display provides superior readability, easy-of-use and visibility in dark environments
- User interface and auto calibration function provides intuitive and easy-to-use operability
- Digital filter function delivers non-distorted roughness profiles for more accurate results
- Limited contour analysis function supports four types of measurement: step, level change, area and coordinate difference
- Password protection prevents unintended operations and protects instrument settings
- Output measured data to a PC with optional RS-232C or USB cable
- Optional column stand available (178-039) to increase operability
| Order No.: | Product Image: | Range X-Axis: | Measuring Force: | Stylus tip (Diamond, angle °/ tip radius): | Drive Unit: | Drive Unit Mass: | |
|---|
| 178-581-11A | — | 1″ / 25mm | .75mN | 60 / 2μm | 128x36x47mm | 1.3lbs / .6kg |
| 178-581-12A | — | 1″ / 25mm | 4mN | 90 / 5μm | 128x39x47mm | 1.3lbs / .6kg |
| 178-583-11A | — | 2″ / 50mm | .75mN | 60 / 2μm | 155x36x47mm | 1.5lbs / .7kg |
| 178-583-12A | — | 2″ / 50mm | 4mN | 90 / 5μm | 155x36x47mm | 1.5lbs / .7kg |
| 178-581-11A |
| 178-581-12A |
| 178-583-11A |
| 178-583-12A |
Технические характеристики
| Measuring Speed: | .002, .004, .008, .02, .04 in/s / .05, .1, .2, .5 mm/s |
|---|
| Returning Speed: | .02, .04, .08, .2in/s / .5, 1, 2mm/s |
|---|
| Detector Z-Range: | 320, 3200, 32000μin / 8, 80, 800μm |
|---|
| Detector Z-Range Resolution: | .005, .05, .5μin / .000125, .00125, .0125μm |
|---|
| Skid Radius of Curvature: | 40mm |
|---|
| Detector Type: | Differential inductance |
|---|
| Power Supply (battery): | Ni-MH |
|---|
| Power Supply: | AC Adapter |
|---|
| Charging Time: | 4 hrs |
|---|
| Endurance: | 1000 measurements (approx) |
|---|
| Internal Data Storage: | 10 sets |
|---|
| External Data Storage: | Micro SD card |
|---|
| Display Unit: | 10.8×4.3×7.8′ / 275x109x198mm |
|---|
| Drive Unit: | 5.04×1.41×1.83′ / 3.75mm |
|---|
| External I/O: | Digimatic output, Footswitch I/F, RS-232C I/F, USB I/F |
|---|
| Display Unit Mass: | 1.7kg |
|---|
| Traversing Direction: | Backward |
|---|
| Positioning (Tilting): | ±1.5° |
|---|
| Up/Down Positioning: | 10mm |
|---|
| Measuring Method: | Skidless/ Skid |
|---|
| Height-Tilt Adjustment Unit Mass: | .9lbs / .4kg |
|---|
