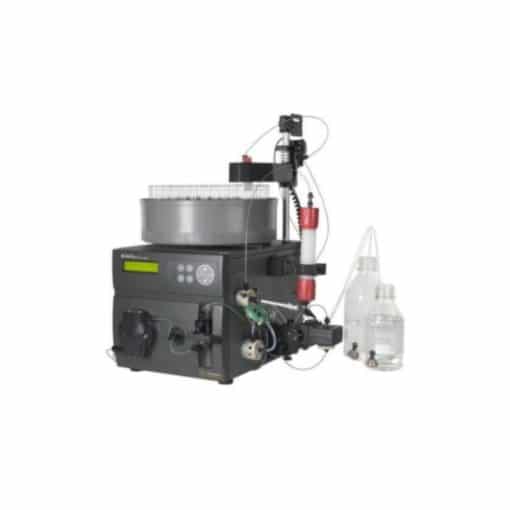

Product Description Specific, quick, push-button methods Easy unpacking and installation High accuracy and reproducibility Simple-to-use, pre-programmed templates Flow rates up to 50 ml/min and pressures up to 1 MPa Method templates for all common chromatography techniques Optimal results with HiTrap, HiPrep and HiLoad prepacked columns The GE AKTA prime plus is a compact and versatile one-step purification system designed to perform general purification tasks including affinity chromatography, buffer exchange, ion exchange, gel filtration, and HIC. The AKTA prime system operates efficiently with most pre-packed columns such as HiTrap, HiPrep, and HiLoad columns which easily snap on to the side of the unit. Equipped with a front panel LCD display and easy-to-use push buttons, the GE AKTA prime plus offers high reproducibility and user convenience. This compact system consists of a control system, monitor, pump and fraction collector, and valves for buffer selection, sample injection, gradient formation and flow diversion. The GE AKTA prime plus liquid chromatography system also features pre-programmed methods for common applications such as purification of affinity tagged proteins, MAbs, and sample clean-up. Specifications Dimensions Depth 450 mm Height 530 mm Width 400 mm Power Requirements 100-120/220-240 VAC Weight 13 kg Flow Rate 0.1 ml/min-50 ml/min Maximum Operating Pressure 1 MPa (145 psi) Tubing I.D. (Flow Path) 0.75 mm Single Wavelength Detection Mercury lamp and 254 and 280 nm filters included. Optional filters for 313, 365, 405, 436 and 546 nm. Optional zink lamp with 214 nm filter. Multiple Wavelength Detection No Flow Cell Path Length 0-14 pH Monitoring Optional, up to 2 samples Multiple Sample Injection Optional, up to 2 steps Multi-Step Purification 20%-95% (noncondensing) Relative Humidity 20%-95% (noncondensing) Viscosity Viscosity max 10 cP (10 ml/min)
Технические характеристики
Specifications
| Dimensions | |
| Depth | 450 mm |
| Height | 530 mm |
| Width | 400 mm |
| Power Requirements | 100-120/220-240 VAC |
| Weight | 13 kg |
| Flow Rate | 0.1 ml/min-50 ml/min |
| Maximum Operating Pressure | 1 MPa (145 psi) |
| Tubing I.D. (Flow Path) | 0.75 mm |
| Single Wavelength Detection | Mercury lamp and 254 and 280 nm filters included. Optional filters for 313, 365, 405, 436 and 546 nm. Optional zink lamp with 214 nm filter. |
| Multiple Wavelength Detection | No |
| Flow Cell Path Length | 0-14 |
| pH Monitoring | Optional, up to 2 samples |
| Multiple Sample Injection | Optional, up to 2 steps |
| Multi-Step Purification | 20%-95% (noncondensing) |
| Relative Humidity | 20%-95% (noncondensing) |
| Viscosity | Viscosity max 10 cP (10 ml/min) |
