Description

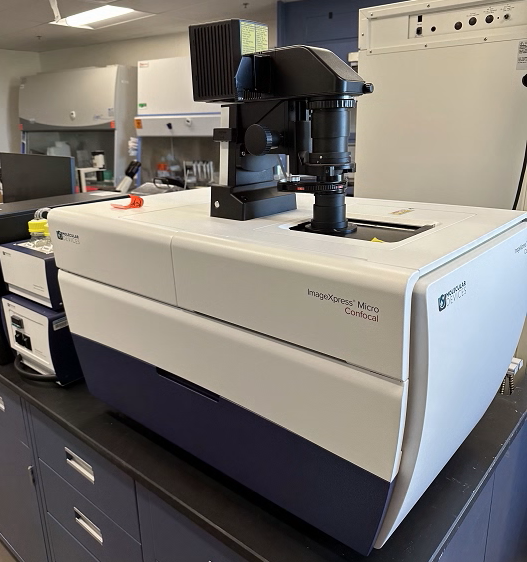

The ImageXpress Micro Confocal system is a high-content solution that can switch between widefield and confocal imaging of fixed and live cells. It can capture high quality images of whole organisms, thick tissues, 2D and 3D models, and cellular or intracellular events. The spinning disk confocal and sCMOS camera enable imaging of fast and rare events like cardiac cell beating and stem cell differentiation. With MetaXpress software and flexible options like water immersion objectives to choose from, the system enables many confocal imaging applications from 3D assay development to screening.
Specifications
- Camera: >,4 megaPixel sCMOS
- Field of view 10x: 1.96 mm2
- Speed: >,200,000 wells/day
- Objectives: Air (1x-100x), Oil (40x, 60x, 100x), and Water (20x, 40x, 60x)
- Filter changer: 8 position emission wheel and 5 position dichroic filter wheel
- Autofocus: Laser+image autofocus
- Phase contrast: Yes
- Transmitted light: Yes
- Brightfield: Yes
- Plates supported: Up to 1536-well plates
- Microscope slides: Yes
- Robotics/Automation-compatible: Yes
- Temperature control: Yes
- CO2 control: Yes
- Fluidics with env. Control: Yes
- Confocal: Yes
- Widefield:Yes
- Software: MetaXpress
- MDC store data management: Yes
- Custom module editor: Yes
