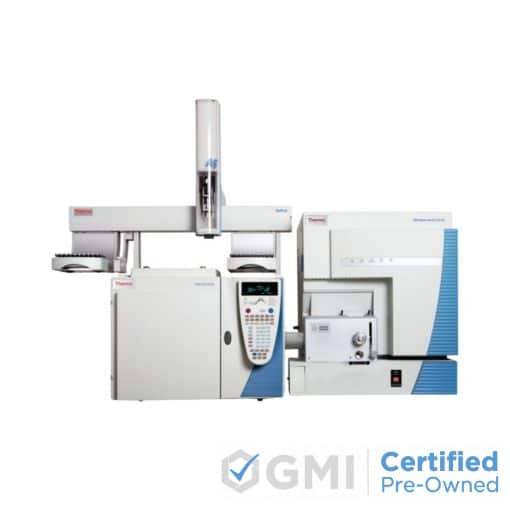

Система Thermo Scientific TSQ Quantum GC Triple Quad GC/MS с автодозатором TriPlus

Product Description Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today! Schedule a consultation Bring unbeatable performance to your trace analysis challenges with the TSQ Quantum GC, the most sensitive GC-MS/MS system available today. Its built on the proven TSQ Quantum triple quadrupole platform to be precise, versatile, and robust for use in your most demanding GC-MS/MS quantitative analyses. Includes Thermo TRACE GC Ultra (S/N:320080407 ) Thermo TSQ Quantum GC (S/N: TQU01895) TP 100 AutoSampler (S/N: 19050300) Edwards 30 Rotary Vacuum Pump Manufacture Specification TSQ Quantum GC Triple Quadrupole Mass Analyzer Mass range of m/z 103000 Patented HyperQuad mass analyzers provide superior and unique combination of resolution and sensitivity H-SRM (Q1, Q3) at 0.4 FWHM 90high-efciency square quadrupole collision cell with noise-reducing geometry CID gas pressure programmable through the software Variable peak width selection in all scan modes Scan rate of 5,000 u per second Vacuum System Unique close-coupled triple inlet turbo molecular pumping 270 L/s Two stages of pumping provide optimal vacuum throughout GC/MS/MS analyzer Single mechanical pump 30 L/min, oor standing Scan Functions Highly sensitive Full-Scan MS in Q1 or Q3 Selected Ion Monitoring (SIM) in Q1 or Q3 Selected Reaction Monitoring (SRM) for the most demanding quantitative assays Product Ion Scan Precursor Ion Scan Neutral Loss Scan TRACE GC Ultra Gas Chromatograph Multi-level temperature program with seven ramps and eight levels settable from 0.1120C/min Eight independent, heated zones for individual control of injectors and detectors plus auxiliary zones Capillary split/splitless injectors with Digital Pressure and Flow Control (DPFC) including gas saver Maximum oven temperature 450C Superior oven cool-down for increased sample productivity, from 450C50C in 250 seconds. TP 100 AutoSampler AS (Liquid Version) Vial volumes- 1, 2, 2.5, 10, and 20 mL Maximum vial capacity- 300 for 1, 2, and 2.5 mL, 108 for 10 or 20 mL Syringes sizes- Self-recognized: 5, 10, 100, and 250 L Injection volume range- 0.1 to 250 in 0.1 L steps, depending on syringe Variable needle lengths- 50 mm for split, 80 mm for Splitless or On-column Parameter setting- 8 method-specific presets or custom menus Washing station- 4 x 10 mL or 2 x 100 mL Waste 1 x 10 mL or drain to external waste bottle Combined solvent rinsing- Yes (Max. 4 solvents) for pre- and post-injection cleaning Typical performance- &lt,0.5 RSD% obtained on std HC mix General Communication- Two independent RS232 serial connections, LAN Instrument control- Thermo chromatography DS integrated, Stand-alone s/w, Pocket PC (Wireless, RS232 or IR communication) Injector compatibility- On-column, Programmable Temperature Vaporizing, Packed, Purged Packed, Split-splitless High throughput configuration- Dual GC set-up (single TriPlus for liquid unattended serving two GCs) Accessory for high automation- Rotating bar code reader Autosampler Length (X axis)- 870 mm Autosampler Width (Y axis)- 540 mm T urret height (Z axis)- 500 mm Vial Trays- Heated and cooled trays expand the range of available applications

Технические характеристики
