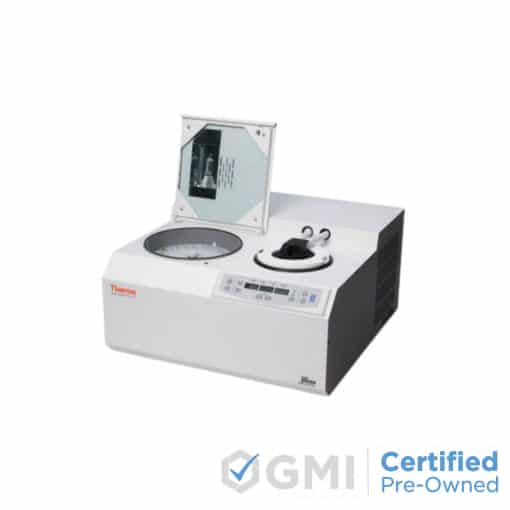

Product Description Supports shallow and deep well microplates Bright display screen Easy one-touch operation Dual vacuum control functions for SPD 1010 Equipped with an oil-free vacuum pump (SPD2010) The Thermo Scientific Savant SPD1010 and SPD2010 SpeedVac Concentrators redefine general-purpose vacuum concentration. These innovative concentrator systems are capable of supporting multiple users and a number of protocols in continuous operation. Specialized requirements including those of biomolecular research laboratories are met by the reliable and hassle-free operation of these concentrators. These Savant SpeedVac concentrators also support the quick and efficient concentration of both aqueous and mild organic solvent-based samples for biomolecular research applications. The SPD1010 and SPD2010 concentrators are versatile and low-maintenance systems that are designed for research, hospital and life science laboratory applications. Simple and Economical Design These SpeedVac concentrators are fully integrated and easy to use. Maintaining each unit is hassle-free as well. The all-in-one design allows SPD1010 and SPD2010 units to save on bench space, combining a concentrator, pump and cold trap within each stand-alone unit. Both models can easily fit inside a standard fume hood. Superior Versatility SpeedVac SPD1010 and SPD2010 concentrators are available in two capacity ranges to accommodate high and low-volume processing. Over 50 rotors are compatible with these models. Accepted sample formats include tubes, vials, microplates and large-volume flasks. A 4-position block rotor enhances the versatility of the SPD2010 concentrator. The model can be fitted with any of the 25 suitable rotor blocks. Users can equip both systems with a chemical trap to concentrate oligonucleotides and radioactive samples. Technical Specifications Model SPD 1010 SPD 2010 Dimensions (L x W x H) cm (in) 62 x 66 x 38 (25 x 26 X 15) 77 x 69 x 47 (31 x 27 x 19) Product Weight 69 kg (139 lbs) 84 kg (186 lbs) Temperature Setting 45 80 C in 5 C increments 45 80 C in 5 C increments Timer Setting (x2)(Heat and Run Separate) 1 min. to 9 hours and 59 min., continuous 1 min. to 9 hours and 59 min., continuous Voltage Input / Frequency / Power 115 VAC / 60 Hz, 12 Amp (115V unit) 230 VAC/ 50Hz, 6 Amps (230V unit 220 VAC / 60Hz, 8 Amps (220V unit) 230 VAC / 50 Hz, 5 Amps (230V unit) Power Consumption 1380 Watts 1760 Watts (220 V) 1150 watts (230 V) Heat Output 4710 BTU/ Hr 6007 BTU/Hr (220V) 3925 BTU/Hr (230V) 220 VAC NEMA 6-15P with an IEC 60320 C13 Connector NEMA 5-15P with an IEC 60320 C13 Connector 230 VAC CEE 7/7 with an IEC 60320 C13 Connector Power Inlet Receptacle CEE 7/7 with an IEC 60320 C13 Connector Motor CEE 7/7 with an IEC 60320 C13 Connector Concentrator Volume 0.4 100 mL 1.5 500 mL Maximum Capacity (120) 1.5 2.0 mL at 60 Hz 2 shallow-well microplates (200) 1.5 2.0 mL tubes (216) 2mL 12 x 32 mm vials (FPR-4A rotor) 12 shallow-well microplates 20 shallow-well microplates (FPR-4A rotor) Vacuum Pump ETFE oil-free diaphragm pump Capacity 36 L/min at 60 Hz 36 L/min at 50 Hz Ramp rate 1 to 5 Display Real-time LED display of time Capacity 4.0 L Operating Temperature -50C Refrigerant 115V 403B 230V 404A
Технические характеристики
Technical Specifications
| Model | SPD 1010 | SPD 2010 |
| Dimensions (L x W x H) cm (in) | 62 x 66 x 38 (25 x 26 X 15) | 77 x 69 x 47 (31 x 27 x 19) |
| Product Weight | 69 kg (139 lbs) | 84 kg (186 lbs) |
| Temperature Setting | 45 – 80 ˚C in 5 ˚C increments | 45 – 80 ˚C in 5 ˚C increments |
| Timer Setting (x2)(Heat and Run Separate) | 1 min. to 9 hours and 59 min., continuous | 1 min. to 9 hours and 59 min., continuous |
| Voltage Input / Frequency / Power | 115 VAC / 60 Hz, 12 Amp (115V unit) 230 VAC/ 50Hz, 6 Amps (230V unit | 220 VAC / 60Hz, 8 Amps (220V unit) 230 VAC / 50 Hz, 5 Amps (230V unit) |
| Power Consumption | 1380 Watts | 1760 Watts (220 V) 1150 watts (230 V) |
| Heat Output | 4710 BTU/ Hr | 6007 BTU/Hr (220V) 3925 BTU/Hr (230V) |
| 220 VAC | NEMA 6-15P with an IEC 60320 C13 Connector | NEMA 5-15P with an IEC 60320 C13 Connector |
| 230 VAC | CEE 7/7 with an IEC 60320 C13 Connector | |
| Power Inlet Receptacle | CEE 7/7 with an IEC 60320 C13 Connector | |
| Motor | CEE 7/7 with an IEC 60320 C13 Connector | |
| Concentrator Volume | 0.4 – 100 mL | 1.5 – 500 mL |
| Maximum Capacity | (120) 1.5 – 2.0 mL at 60 Hz 2 shallow-well microplates | (200) 1.5 – 2.0 mL tubes (216) 2mL 12 x 32 mm vials (FPR-4A rotor) 12 shallow-well microplates 20 shallow-well microplates (FPR-4A rotor) |
| Vacuum Pump | ETFE oil-free diaphragm pump | |
| Capacity | 36 L/min at 60 Hz 36 L/min at 50 Hz | |
| Ramp rate | 1 to 5 | |
| Display | Real-time LED display of time | |
| Capacity | 4.0 L | |
| Operating Temperature | -50˚C | |
| Refrigerant | 115V 403B 230V 404A |
