Штангенциркуль с длинными губками в форме наконечника

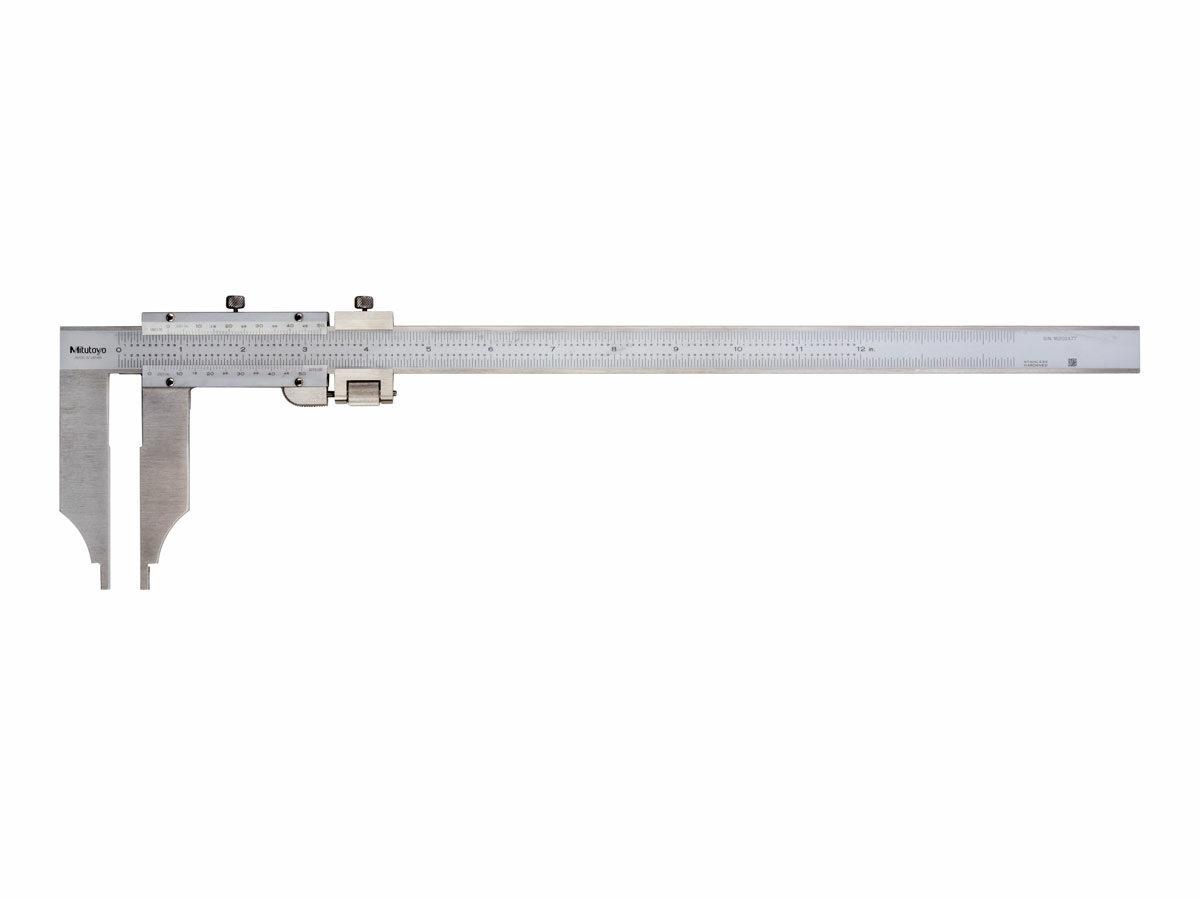

Штангенциркуль Mitutoyo Vernier с длинными губками позволяет с высокой точностью измерять внутренние и внешние размеры в труднодоступных местах детали.

The Mitutoyo Vernier scale caliper features long nib-style jaws made of hardened stainless steel to take precise inner and outer dimensions in recesses and other hard measurements to reach. The nib jaws have rounded measuring surfaces for more accurate measurements on non-flat surfaces found in pieces such as bearings. The Vernier caliper»s 14-degree face angle makes reading the scale easier and helps prevent parallax error in measurement reading. The scales are raised to slide easily and protect the graduation markings. The Vernier caliper with thumb clamp is made of hardened stainless steel that is corrosion resistant, and a satin chrome finish reduces glare.

Available in Metric and Metric/Inch models
A fine adjustment carriage is available on models except for 534-109 and 534-110
Raised sliding surfaces prevent defacement and wear of scale graduations
The caliper is made of corrosion-resistant, hardened stainless steel
Lock screw holds the sliding jaw position for accurate measurement taking
The caliper meets Federal Accuracy Specifications GGG-C-111B
Most models supplied with a vinyl holster in a fitted carton
Supplied in a fitted wooden case

Order No.:	Product Image:	Units:	Range:	Minimum dimension in ID measurement:	Accuracy:	Mass:	Graduation Lower Scale:	Graduation Upper Scale:

Order No.:

534-101	—	Metric, Inch	0-300mm / 0-12″	10.1mm	±0.07mm	460g	0.05mm	1/128″
534-102		Metric, Inch	0-500mm / 0-20″	20.1mm	±0.13mm	1500g	0.05mm	1/128″
534-103	—	Metric, Inch	0-700mm / 0-30″	20.1mm	±0.16mm	2900g	0.05mm	1/128″
534-104	—	Metric, Inch	0-1000mm / 0-40″	20.1mm	±0.20mm	3500g	0.05mm	1/128″
534-105	—	Metric, Inch	0-300mm / 0-12″	10.1mm	±0.04mm	460g	0.02mm	.001″
534-106	—	Metric, Inch	0-500mm / 0-20″	20.1mm	±0.06mm	1500g	0.02mm	.001″
534-107	—	Metric, Inch	0-700mm / 0-30″	20.1mm	±0.08mm	2900g	0.02mm	.001″
534-108		Metric, Inch	0-1000mm / 0-40″	20.1mm	±0.10mm	3500g	0.02mm	.001″
534-109	—	Metric	0-300mm	10.1mm	±0.07mm	400g	0.005mm	0.05mm
534-110		Metric	0-500mm	20.1mm	±0.13mm	1400g	0.005mm	0.05mm
534-113	—	Metric	0-300mm	10.1mm	±0.04mm	460g	0.02mm	0.02mm
534-114		Metric	0-500mm	20.1mm	±0.06mm	1500g	0.02mm	0.02mm
534-115	—	Metric	0-750mm	20.1mm	±0.08mm	2900g	0.02mm	0.02mm
534-116	—	Metric	0-1000mm	20.1mm	±0.10mm	3500g	0.02mm	0.02mm
534-117		Inch	0-10″	0.304″	±0.002″	400g	0.001″	.001″
534-118	—	Inch	0-20″	0.804″	±0.003″	1500g	0.001″	.001″
534-119		Inch	0-30″	0.804″	±0.004″	2900g	0.001″	.001″
534-120		Inch	0-40″	0.804″	±0.004″	3500g	0.001″	.001″
