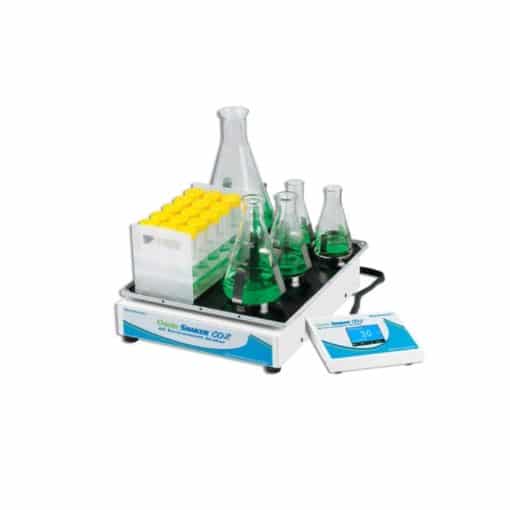

Product Description Designed to fit and maximize capacity in most CO2 incubators Remote control, adjust without disrupting the CO2 environment Horizontally circular 19mm orbit for aeration & mixing Instantly exchange flask clamps with MAGic Clamp accessories (PATENTED) The new Orbi-Shaker CO2 series is designed for shaking, mixing& aeration applications in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 60C and humidity levels up to 100%. To avoid contamination, unintentional release of gas or deviations from protocol, all settings are adjusted via the included remote control module. This module can be stored outside of the chamber and connects to the shaker via a flat (1mm thickness) cable, that easily passes through a port or underneath an incubator door without compromising the seal. This allows for user adjustment of run time or mixing speed without opening the chamber door(s). The instrument is supplied with a non-slip rubber mat platform. In addition, convenient MAGic Clamp platforms (of multiple sizes) are also available for use with Erlenmeyer flasks and test tube racks. The unique magnetic attachment method (PATENTED) has been widely recognized as the easiest way to instantly change between flask clamps of different sizes. Technical Specifications BT4001 OrbiShaker CO2 with flat mat platform (1313) BT4011 OrbiShaker CO2 XL with flat mat platform (1616.5) Compatibility Chart Thermo Scientific Heracell New Brunswick Shel Lab Nuaire Fisher VWR Symphony 150 240 Galaxy S41i Galaxy 171 142L & 167L 4750, 4850, 4950, 5800 IsoTemp 184 5.3A 8.5A OrbiShaker CO2 platform 1412 Compatible Compatible Compatible, Maximizes Capacity Compatible Compatible Compatible Compatible Compatible Compatible OrbiShaker CO2 XL platform 1616.5 Compatible, Maximizes Capacity Compatible Not Compatible Compatible, Maximizes Capacity Compatible Compatible Compatible Compatible, Maximizes Capacity Compatible OrbiShaker CO2 XL platform 1818 Not Compatible Compatible, Maximizes Capacity Not Compatible Not Compatible Compatible, Maximizes Capacity Compatible, Maximizes Capacity Compatible, Maximizes Capacity Not Compatible Compatible, Maximizes Capacity Speed Range 30 to 300 rpm Speed Increment 1 rpm Orbit 19mm Timer 1 min. to 99 hr or continuous Ambient Operating Temp. 0C to 65C Warranty 2 Years BT4001 Orbi-Shaker CO2 Platform Size 13 x 12 in. / 33 x 30 cm Load Capacity 1 x 2L or 5 x 1L Dimensions (in) 11.9 x 13.4 x 3.5 Dimensions (cm) 30 x 34 x 9 Weight 25lbs (11.5kg) Cord Length 60.5in / 154 cm Electrical 115 or 230V 50-60Hz, 600W BT4011 Orbi-Shaker CO2 XL Platform Size 16 x 16.5 in. / 40 x 42.5 cm Load Capacity 5 x 2L or 9 x 1L Dimensions (in) 17 x 18 x 5 Dimensions (cm) 43 x 45.75 x 12.7 Weight 50lbs (23kg) Cord Length 60.5 / 154 cm Electrical 115 or 230V 50-60Hz, 600W
Технические характеристики
Technical Specifications
| Speed Range | 30 to 300 rpm |
| Speed Increment | 1 rpm |
| Orbit | 19mm |
| Timer | 1 min. to 99 hr or continuous |
| Ambient Operating Temp. | 0°C to 65°C |
| Warranty | 2 Years |
| BT4001 Orbi-Shaker CO2 | |
| Platform Size | 13 x 12 in. / 33 x 30 cm |
| Load Capacity | 1 x 2L or 5 x 1L |
| Dimensions (in) | 11.9 x 13.4 x 3.5 |
| Dimensions (cm) | 30 x 34 x 9 |
| Weight | 25lbs (11.5kg) |
| Cord Length | 60.5in / 154 cm |
| Electrical | 115 or 230V 50-60Hz, 600W |
| BT4011 Orbi-Shaker CO2 XL | |
| Platform Size | 16 x 16.5 in. / 40 x 42.5 cm |
| Load Capacity | 5 x 2L or 9 x 1L |
| Dimensions (in) | 17 x 18 x 5 |
| Dimensions (cm) | 43 x 45.75 x 12.7 |
| Weight | 50lbs (23kg) |
| Cord Length | 60.5 / 154 cm |
| Electrical | 115 or 230V 50-60Hz, 600W |
