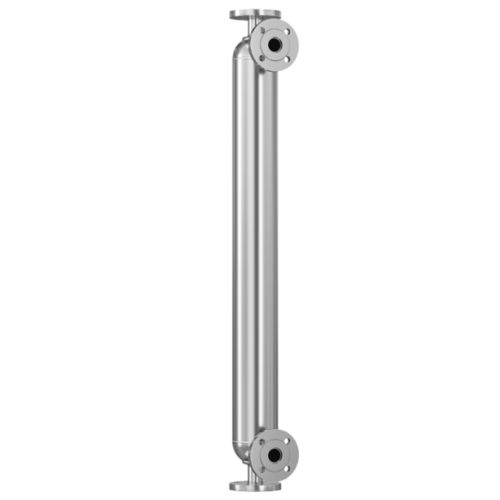

type shell and tube heat exchangers are a perfect solution for low power systems. S type shell and tube heat exchangers are a perfect solution for low power systems. Their compact size and small X-shaped or straight connections are perfect wherever limited space or low system power prevent from using larger exchangers. The S type exchangers are special versions of the smallest JAD exchanger models. Aside from more compact size, the S type exchangers allow for decreasing pressure losses on shell side, while maintaining high flow speed. They come in the regular version with perpendicular connections and the X-shaped version, in which they take all the advantages of JAD X exchangers, complementing them with their own unique features. Features Saving space -compact size of the exchanger and the possibility of vertical installation reduce the space necessary for installation Low operating costs — the X-shaped design of the connections and corrugated coil tubes make the exchangers more resistant to deposits High efficiency — higher heat exchange coefficient obtained thanks to corrugated tubes, which increase the flow turbulence, intensifying the heat exchange Made according to PED and ASME
Технические характеристики
CharacteristicsTypeshell and tubeFluidwater/waterMaterialstainless steelOther characteristicscompact, pressure, smallOperating pressure
16 bar (232.06 psi)
Temperature
165 °C, 203 °C (329 °F)
