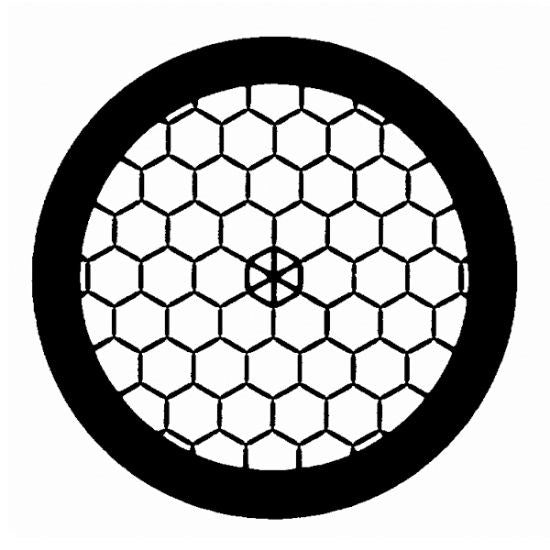

Veco Hexagonal Mesh Grids
Veco Grids offer superior handling characteristics. Plus, with a 20.3um thickness, Veco Grids are the most rigid grids available. 3.05 mm diameter.
Technical Data um Type Product Pitch Hole Bar 75 mesh EMSH075-Cu 333 283 50
EMSH075-Ni 333 283 50 100 mesh EMSH100-Cu 250 200 50
EMSH100-Ni 250 200 50 150 mesh EMSH150-Cu 167 117 50
EMSH150-Ni 167 117 50 200 mesh EMSH200-Cu 125 85 40
EMSH200-Ni 125 85 40
EMSH200-Au 125 85 40 300 mesh EMSH300-Cu 83 45 38
EMSH300-Ni 83 45 38
EMSH300-Au 83 45 38 400 mesh EMSH400-Cu 63 30 33
EMSH400-Ni 63 30 33 H111KSpec EMSH111K-Cu — 185 —
EMSH111K-Ni — 185 —
