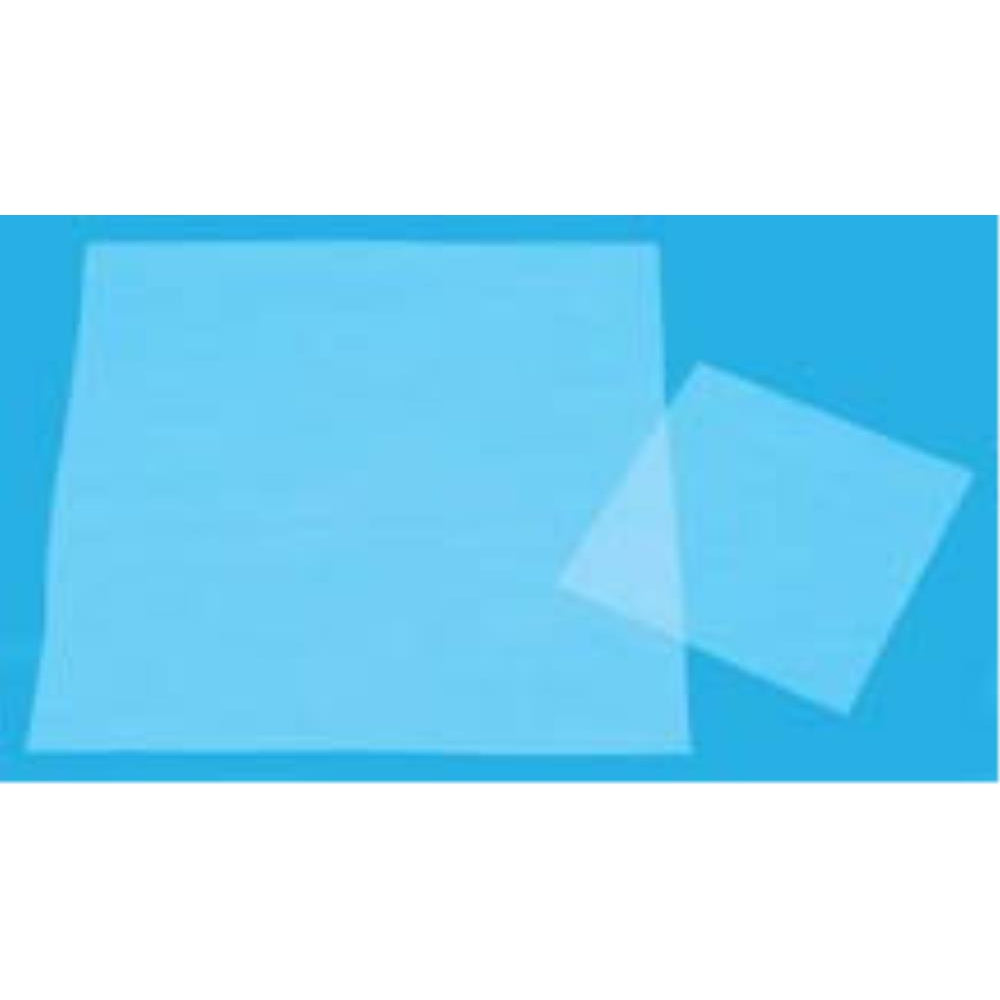

Also called plankton nets. These precision screening cloths are woven with monofilament fibres (single threads) with accurate diameters, resulting in a mesh with precise openings that resist clogging and are easy to clean. Mesh screening is suited for sifting, straining, filtration and immersion applications. Used in sample preparation, sorting and prototyping in laboratories and shops. Polyester mesh is stronger than nylon in wet conditions. Maximum temperature is 127 deg. C. Colour is opaque to translucent white.
Available in one pre deg. Cut size, 305 x 305mm, or on a 1m wide roll, minimum order 90cm
Specifications for polyester mesh sizes
Cat. No. Mesh Openings per sq. inch Thread dia. inch Thread dia. Micrometre Opening size inch Opening size Micrometre Open area % Micron rating W422-050 50 46 x 46 0.0074 188 0.0148 376 46 375 W422-100 100 109 x 109 0.0034 86 0.0059 150 41 150 W422-150 150 145 x 145 0.003 76 0.0039 100 32 100 W422-300 300 320 x 320 0.0016 41 0.0016 41 25 40 W422-400 400 371 x 371 0.0017 43 0.0011 28 16 27
